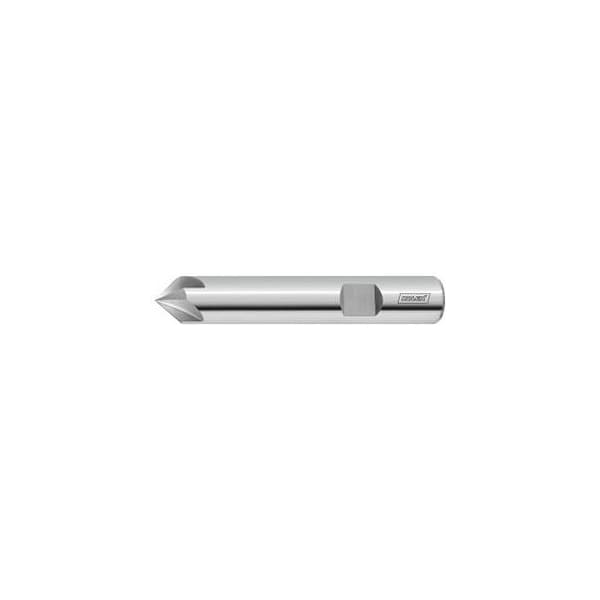

Solid Carbide Deburring Mill, 90 Deg, Uncoated, 8 mm
Mfr # 208111 8
Zoro # G014423588
product price: $29.19
/eaKey Features
End Mill Style
Chamfer
Type of Product
Deburrers
Coolant Through
no
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
208111 8
Zoro #
G014423588
UPC #
-
Country of Origin
Germany
Dimensions
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
h6
Dimension S
5.6 mm
Maximum Cutting Depth Ap Max When Side Milling
5.6 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5.6 mm
Dia. (In.)
8 mm
Overall Length
59 mm
Shank Diameter
8 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HB to h6 Chamfer mill: 45 degrees No. of teeth Z: 4 Dimension S: 5.6 mm Overall length L: 59 mm Shank Dia. Ds: 8 mm Feed fz in steel < 900 N/mm2: 0.04 mm
