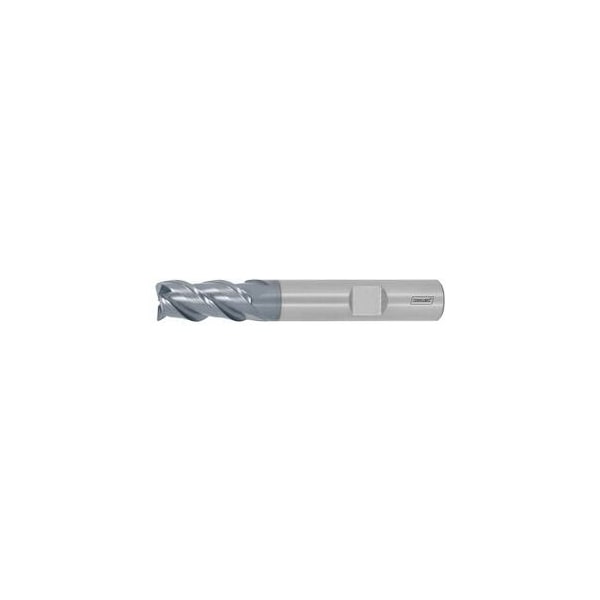

Solid Carbide End Mill, AlCrN Coated, 9 mm
Mfr # 202296 9
Zoro # G314384954
product price: $52.29
/eaKey Features
Milling Diameter
9 mm
Overall Length
72 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
202296 9
Zoro #
G314384954
UPC #
-
Country of Origin
China
Dimensions
Milling Diameter
9 mm
Overall Length
72 mm
Length of Cut
19 mm
Tolerance Nominal Diameter
e8
Shank Dia.
10 mm
Corner Chamfer Width at 45°
0.3 mm
Maximum Cutting Depth Ap Max When Side Milling
19 mm
Min. Cutting Depth
0.1 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Description
Dimensions similar to DIN 6527. Improved coating for general-purpose applications in steel and cast iron. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 19 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm Shank form: HB Corner chamfer width at 45 Deg: 0.3 mm
