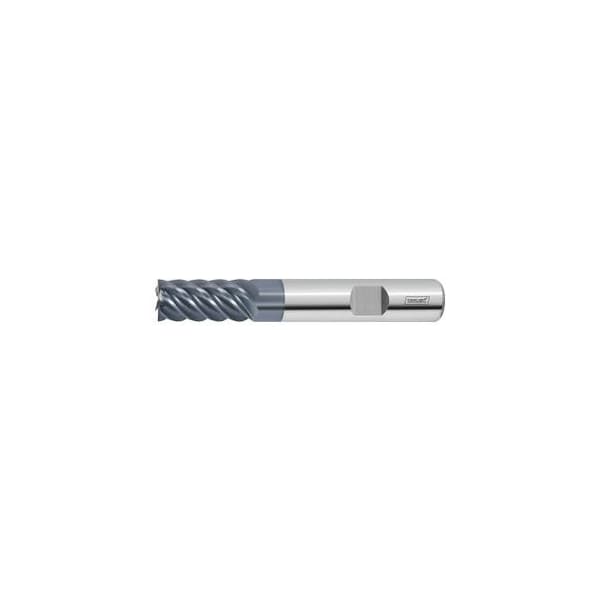

Solid Carbide End Mill, TiAlN Coated, 5 mm
Mfr # 203520 5
Zoro # G814382016
product price:Â
$
26.89
/ea
Key Features
Milling Diameter
5 mm
Overall Length
57 mm
Number of Flutes
6
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203520 5
- Zoro #
- G814382016
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 5 mm
- Overall Length
- 57 mm
- Length of Cut
- 13 mm
- Shank Dia.
- 6 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 13 mm
- Cutting Width Ae for Milling Operation
- 0.1×D for side milling
- Corner Chamfer Width at 45°
- 0.1 mm
- Tolerance Nominal Diameter
- h10
- Min. Cutting Depth
- 0.1 mm
Description
High stability and extremely smooth cutting action due to at least 6 teeth. Eccentric relief ground. For profile milling as a finishing operation. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HB to h6 No. of teeth Z: 6 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.1 mm Feed fz for side milling in steel < 900 N/mm2: 0.032 mm
