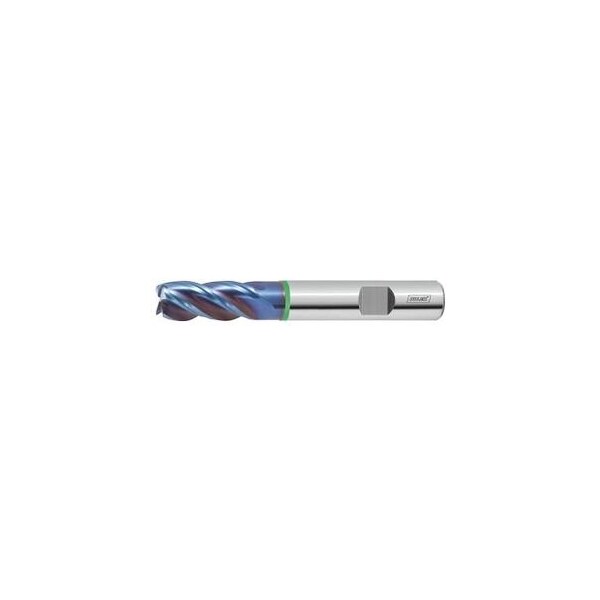

Solid Carbide End Mill, TiXSi Coated, 3 mm
Mfr # 203044 3
Zoro # G914382534
product price: $36.19
/eaKey Features
Shank Type
DIN 6535 HB to h6
Shank Dia.
6 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Feed Fz For Side Milling in Steel < 900 N/mm2
0.025 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203044 3
Zoro #
G914382534
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
6 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Milling Diameter
3 mm
Overall Length
57 mm
Length of Cut
8 mm
Neck Dia.
2.8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Min. Cutting Depth
0.32 mm
Corner Chamfer Width at 45°
0.1 mm
Description
For roughing and finishing. Up to 1.5xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 8 mm Overhang length L1 incl. recess: 13 mm Recess Dia. D1: 2.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
