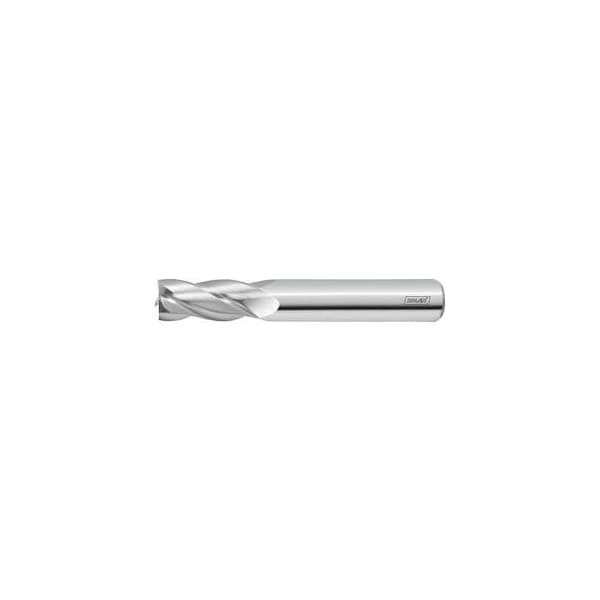

Solid Carbide End Mill, Uncoated, 2 mm
Mfr # 202680 2
Zoro # G914384279
product price:Â
$
19.35
/ea
Key Features
Overall Length
32 mm
Milling Diameter
2 mm
Finish
uncoated
Type of Product
End Mill
Corner Chamfer Angle
90 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202680 2
- Zoro #
- G914384279
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 32 mm
- Milling Diameter
- 2 mm
- Tolerance Nominal Diameter
- e8
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 8 mm
- Length of Cut
- 8 mm
- Shank Dia.
- 2 mm
Description
Eccentric relief ground. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 8 mm Overall length L: 32 mm Shank Dia. Ds: 2 mm Shank form: HA Feed fz for slot milling in steel < 900 N/mm2: 0.01 mm
