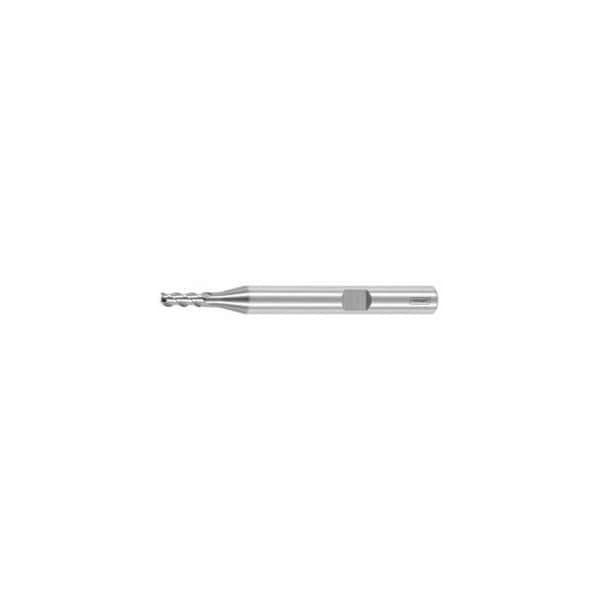

Solid Carbide End Mill, Uncoated, 4 mm
Mfr # 202307 4
Zoro # G414381402
product price: $23.15
/eaKey Features
Maximum Cutting Depth Ap Max When Slot Milling From Solid
2 mm
Standard
DIN 6527
Type of Product
End Mill
Feed Fz For Side Milling in Steel < 750 N/mm2
0.025 mm
Color Ring
without
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202307 4
Zoro #
G414381402
UPC #
-
Country of Origin
China
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
2 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Tolerance Nominal Diameter
e8
Milling Diameter
4 mm
Length of Cut
11 mm
Shank Dia.
6 mm
Overall Length
57 mm
Description
Dimensions similar to DIN 6527. Note: Successor product to No. 202240 / 202245. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Shank form: HB Feed fz for slot milling in steel < 750 N/mm2: 0.02 mm
