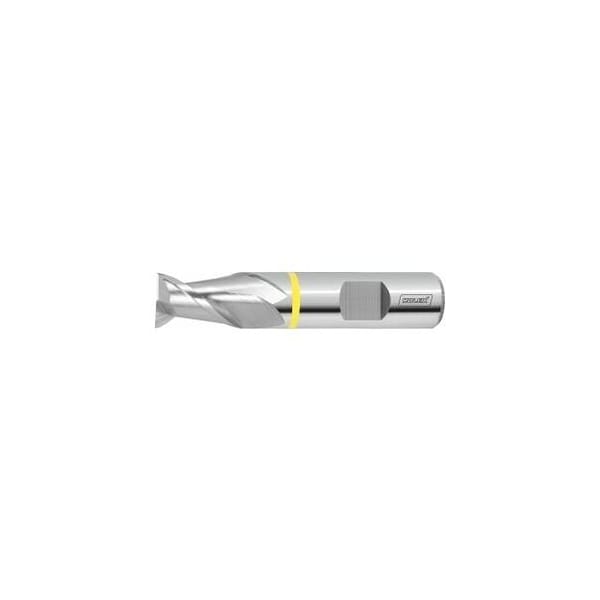

Solid Carbide End Mill , Uncoated, 5 mm
Mfr # 201200 5
Zoro # G514375394
product price: $21.45
/eaKey Features
Shank Dia.
6 mm
Cutting Direction
horizontal, oblique and vertical
Finish
uncoated
Shank Type
DIN 6535 HB to h6
Length of Cut
9 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
201200 5
Zoro #
G514375394
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
6 mm
Length of Cut
9 mm
Milling Diameter
5 mm
Tolerance Nominal Diameter
h10
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm
Corner Chamfer Width at 45°
0.1 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
9 mm
Overall Length
54 mm
Description
Stronger cutting edges. Dimensions similar to DIN 6527. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 2 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 2 Flute length Lc: 9 mm Overall length L: 54 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.1 mm Feed fz for slot milling in short-chipping aluminium: 0.015 mm
