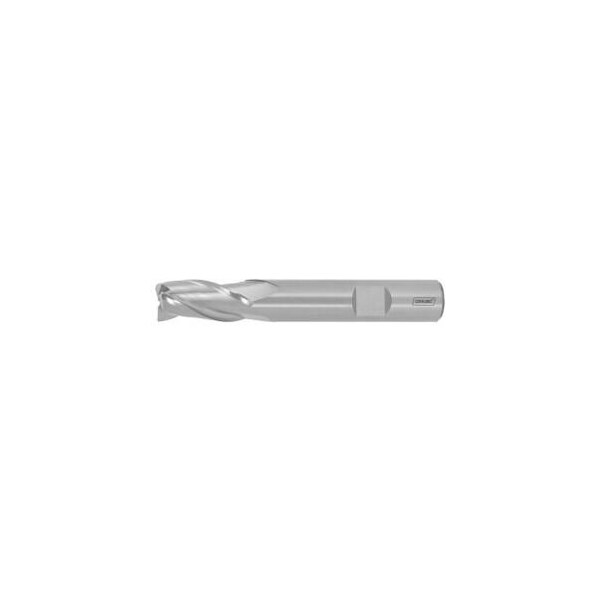

Solid Carbide End Mill, Uncoated, 5 mm
Mfr # 202277 5
Zoro # G514384839
product price: $22.99
/eaKey Features
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Min. Cutting Depth
0.1 mm
Correction Factor Fz
1.25
Feed Fz For Side Milling in Steel < 750 N/mm2
0.04 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202277 5
Zoro #
G514384839
UPC #
-
Country of Origin
China
Dimensions
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Min. Cutting Depth
0.1 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm
Tolerance Nominal Diameter
e8
Overall Length
57 mm
Milling Diameter
5 mm
Length of Cut
13 mm
Shank Dia.
6 mm
Description
Dimensions similar to DIN 6527. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Shank form: HB Corner chamfer width at 45 Deg: 0.2 mm
