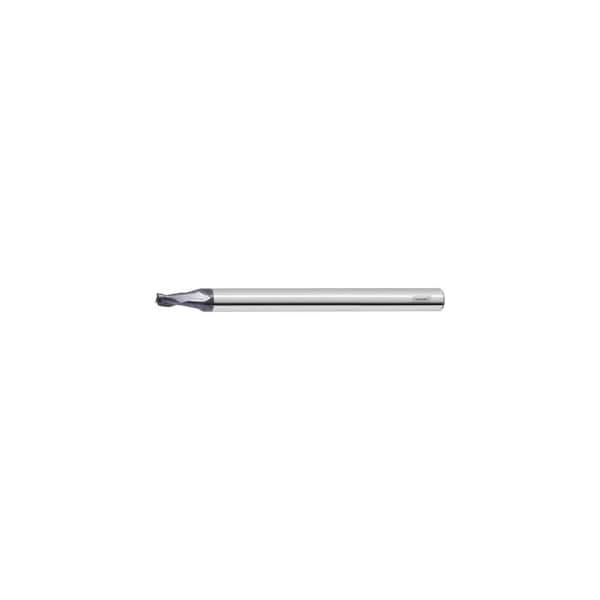

Solid Carbide Mini End Mill, TiAlN Coated, 1 mm
Mfr # 201842 1
Zoro # G914381247
product price: $20.25
/eaKey Features
Type
N
Cutting Direction
horizontal, oblique and vertical
Overall Length
38 mm
Coolant Through
No
Length of Cut
2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
201842 1
Zoro #
G914381247
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
38 mm
Length of Cut
2 mm
Shank Dia.
3 mm
Maximum Cutting Depth Ap Max When Side Milling
2 mm
Tolerance Nominal Diameter
h10
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.5 mm
Milling Diameter
1 mm
Description
Weldon shank similar to DIN 6535 HB. Economy version. Note: Save on regrinding costs: It is cheaper to use solid carbide mini slot drills to the wear limit than to regrind them. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 2 mm Overall length L: 38 mm Shank Dia. Ds: 3 mm Shank form: HA Feed fz for slot milling in steel < 900 N/mm2: 0.005 mm
