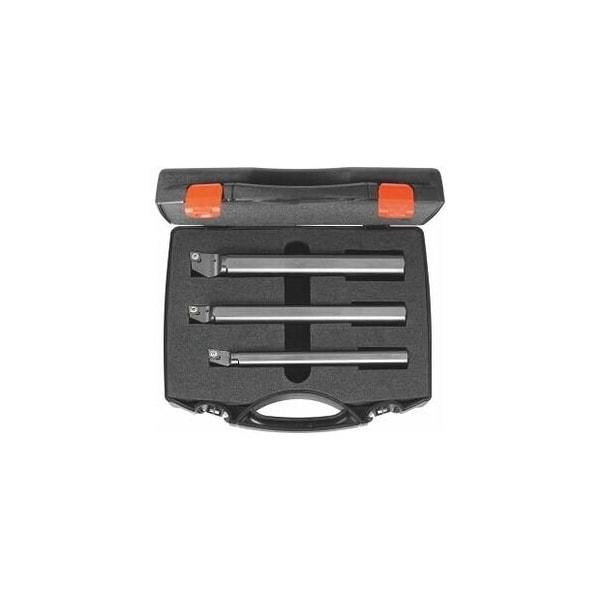

Steel Boring Bar Set, 3 Pieces, for CC 3 Inserts, Left-Hand
Mfr # 260037 SET09
Zoro # G414821359
product price: $350.99
/ea
Free Shipping & Returns
Key Features
Type
SET09
Clamping Height
15 mm; 18 mm; 23 mm
Center Offset
10.7 mm, 10.5 mm, 14.5 mm
Insert Shape
80 Degrees Diamond
Standards
DIN 8024
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260037 SET09
Zoro #
G414821359
UPC #
-
Country of Origin
China
Dimensions
Clamping Height
15 mm; 18 mm; 23 mm
Max. Bore Dia.
3 x D
Min. Pre-Drill Diameter Dmin
20 mm; 25 mm; 28 mm
Overall Length
180 mm, 200 mm
Details
Type
SET09
Center Offset
10.7 mm, 10.5 mm, 14.5 mm
Insert Shape
80 Degrees Diamond
Standards
DIN 8024
Item
Boring bar
Coolant Through
Yes
ISO Number
A25R SCLCR/L09, A16Q SCLCR/L09, A20R SCLCR/L09
Cutting Direction
Left-Hand
Description
Supplied with: Plastic case Through-coolant: yes Standard: DIN 8024 ISO code toolholder: A25R SCLCR/L09 ISO code toolholder: A16Q SCLCR/L09 ISO code toolholder: A20R SCLCR/L09 suitable indexable insert: CC 09T3 Minimum pre-drill Diametermin: 20 mm Minimum pre-drill Diametermin: 25 mm
