Shop HOLEX

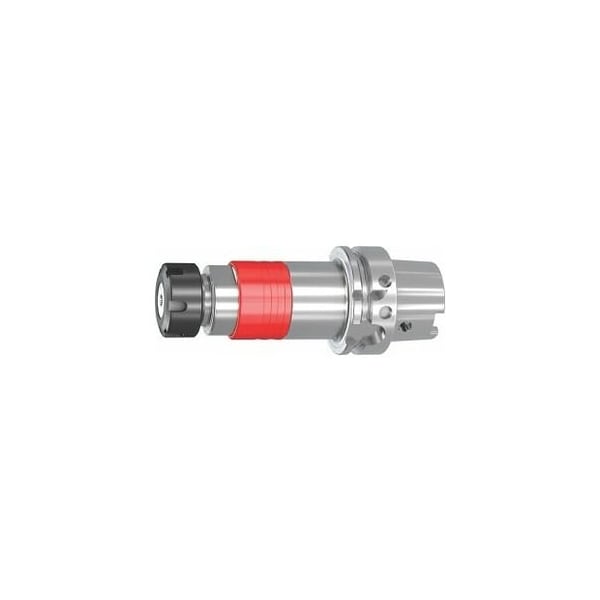

Tapping chuck, ER Synchro, HSK-A 63, for ER Collets: 25

  • Mfr # 338195 25
  • Zoro # G014777254

product price:
$
472.99
/ea
Free Shipping & Returns

Key Features

Dia. (In.)
42 mm
Taper
HSK63A
Coolant Through
Yes, With Max. 50 Bar
Outside Dia.
45 mm
Tapping Range
M6 - M20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
338195 25
Zoro #
G014777254
UPC #
-
Country of Origin
China
Item
Tapping head
Taper
HSK63A
Coolant Through
Yes, With Max. 50 Bar
Tapping Range
M6 - M20
Standards
DIN 69882-6
Projection
130 mm
Shape
A

Dimensions

Dia. (In.)
42 mm
Outside Dia.
45 mm
Length Compensation By Tension
0.5 mm
Length Compensation By Compression
0.5 mm

Description

With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Coolant feed pipe for HSK No. 309880. Note: Do not degrease the synchro tapping chuck. Shape: A Tapping range: M6 M20 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 45 mm Internal Dia D1: 42 mm Overhang dimension A: 130 mm
