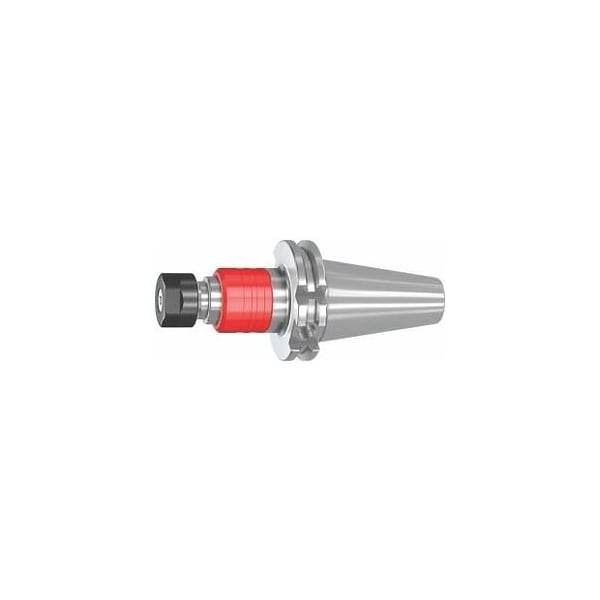

Tapping chuck, ER Synchro, SK 40, for ER Collets: 16
Mfr # 338190 16
Zoro # G314777244
product price:Â $276.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
28 mm
Projection
85 mm
Tapping Range
M4 − M12
Length Compensation By Compression
0.5 mm
Standards
ISO 7388-1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 338190 16
- Zoro #
- G314777244
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dia. (In.)
- 28 mm
- Length Compensation By Compression
- 0.5 mm
- Length Compensation By Tension
- 0.5 mm
- Outside Dia.
- 34 mm
Details
- Item
- Tapping head
- Projection
- 85 mm
- Tapping Range
- M4 − M12
- Standards
- ISO 7388-1
- Taper
- SK40
- Shape
- AD
- Coolant Through
- Yes, With Max. 50 Bar
Description
With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Pull studs No. 308600 - 308806. Note: Do not degrease the synchro tapping chuck. Shape: AD Tapping range: M4 M12 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 34 mm Internal Dia D1: 28 mm Overhang dimension A: 85 mm
