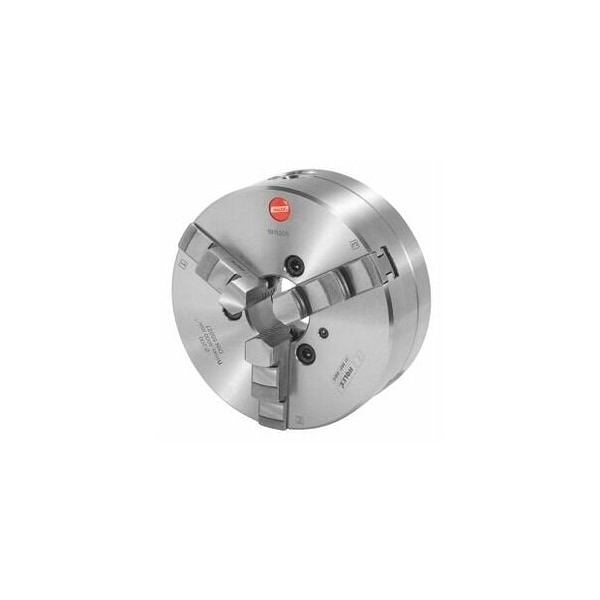

Three-jaw Lathe Chuck, Steel with Short Taper Mount, DIN 702-3, Diameter/Taper: 200/6mm

Manual chucks with gear scroll, centrically clamping. Body made of cast iron or steel. Gear scroll drop-forged, balanced, and hardened. Flanks of scroll and of jaw serrations are ground. High concentricity. Application: The chuck is always fitted to the spindle nose directly without an intermediate flange. For spindle noses DIN 55027 with studs and collar nuts. Standard: DIN 702-3. Supplied with: Includes: 1 set = 3 hardened inside jaws, stepped on the outside. 1 set = 3 hardened outside jaws, stepped on the inside. 1 clamping wrench and fastening screws or studs depending on the chuck. Optional extras: Spare and additional jaws No. 312971 312986. color code for accessories: HOLEX geared scroll chucks and jaws Aperture E: 55 mm Height without jaws H1: 78 mm Height with jaws H2: 107 mm centering Dia B: 106.4 mm Weight: 19 kg maximum speed: 4000 min-1
