  9. Engine Driven Pump, 163 cc

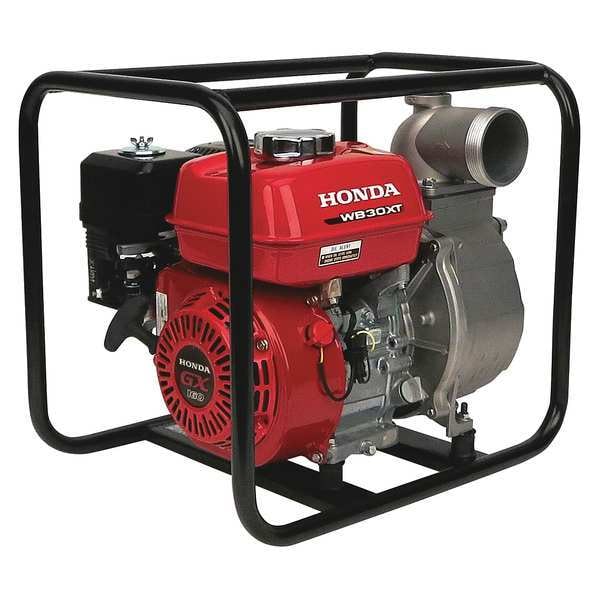

Honda Engine Driven Pump, 163 cc WB30XT3 - main

Engine Driven Pump, 163 cc

  • Mfr # WB30XT3

  • Zoro # G3625221

product price: $763.99
/ea
Free Shipping & Returns

Key Features

Engine Brand
Honda
Ignition Type
Recoil-Start
Roll Bar Frame
Steel
Impeller Type
Open
GPM of Water @ 20 Ft. of Head
230
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WB30XT3
Zoro #
G3625221
UPC #
786102002547
Country of Origin
Thailand

Dimensions

Length
20"
Height
18"
Width
15"
Engine Size
163 cc
Inlet Dia.
3 in
Discharge Dia.
3 in
Max. Diameter Solids
3/8 in
Overall Length
20 in
Overall Width
15 in
Overall Height
18 in
Manufacturers Warranty Length
2 yr
Discharge Diameter
3 in
Solids Diameter - Maximum
3/8 in
Inlet Diameter
3 in

Details

Engine Brand
Honda
Ignition Type
Recoil-Start
Roll Bar Frame
Steel
Impeller Type
Open
GPM of Water @ 20 Ft. of Head
230
Volute/Wear Plate
Cast Iron
GPM of Water @ 70 Ft. of Head
50
GPM of Water @ 30 Ft. of Head
197
Engine/Motor Type
Gas
Material of Construction
Cast Iron
Temp. Range
0 Degrees to 130 Degrees F
Item
Engine Driven Pump
Max. Head
85 ft
GPM of Water @ 10 Ft. of Head
253
Outlet
3" NPT
Max. Pressure
37 psi
Self-Priming
Yes
Max. Suction Lift
26 ft
Engine RPM
3750
GPM of Water @ 40 Ft. of Head
163
GPM of Water @ 60 Ft. of Head
90
Application
General Purpose
Tank Capacity
0.82 gal
GPM of Water @ 50 Ft. of Head
129
Number of Impellers
1
GPM of Water @ 80 Ft. of Head
10
Seal Material
Silicon Carbide
Inlet
3 in NPT
Sensor Type
Low Oil
Check Valve
Buna N
Mechanical Seal
Silicon Carbide
Impeller Material
Cast Iron
Max. Liquid Temp.
130 Degrees F
Flow Rate @ 20 Ft. of Head
235 gpm
Flow Rate @ 10 Ft. of Head
265 gpm
Discharge Standard
NPT
Volute Material
Cast Iron
Flow Rate @ 40 Ft. of Head
170 gpm
Power Source
Gas Engine
Inlet Standard
NPT
Flow Rate @ 60 Ft. of Head
95 gpm
Frame Material
Steel
Discharge
3 in MNPT
Body Material
Aluminum
Flow Rate @ 80 Ft. of Head
20 gpm
RPM
3,750 RPM
Impeller Design
Open
Maximum Discharge Pressure
37 psi
Pump Mechanism
Centrifugal
HP
4 4/5 hp
Inlet Gender
Male
Discharge Gender
Male
Frame Design - Pumps
Full Tubular Frame
Includes
Hose Clamps and Strainer
Standards
EPA/CARB
Self-Priming Lift - Maximum
25 ft
Discharge Pressure - Maximum
37 psi
Flow Rate @ 10 ft of Head
290 gpm
Horsepower
4 4/5 hp
Engine Series
GX160
Flow Rate @ 20 ft of Head
235 gpm
Rotation Speed - Maximum
3,750 RPM
Feet of Head - Maximum
85 ft
For Media Type
Trash Water
Frame Design
Roll Cage
Suction Lift - Maximum
26 ft
Series
Honda Water Pumps
Liquid Temperature - Maximum
130 Degrees F

Description

Engine Driven Pump, Engine Size 163 cc, HP 4 4/5 hp, Tank Capacity 0.82 gal, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron, Seal Material Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 265 gpm, Flow Rate @ 20 Ft. of Head 235 gpm, Flow Rate @ 40 Ft. of Head 170 gpm, Flow Rate @ 60 Ft. of Head 95 gpm, Flow Rate @ 80 Ft. of Head 20 gpm, Max. Head 85 ft, Max. Suction Lift 26 ft, Frame Design - Pumps Full Tubular Frame
