Shop HONDA

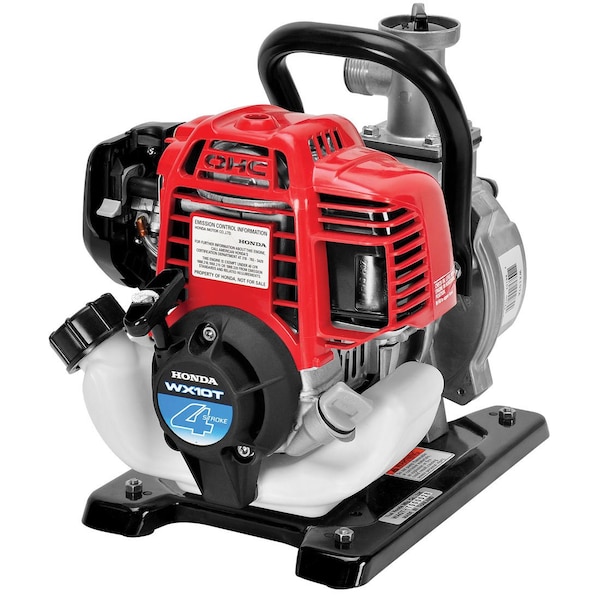

Water Pump, Aluminum, 1-2/3 hp

  • Mfr # WX10TN

  • Zoro # G914643659

product price:
$
599.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Max. Suction Lift
26 ft
RPM
3,600 RPM
Overall Height
11 5/8 in
Inlet Dia.
1 in
Maximum Self-Priming Lift
121 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WX10TN
Zoro #
G914643659
UPC #
786102002844
Country of Origin
Thailand

Dimensions

Overall Height
11 5/8 in
Inlet Dia.
1 in
Overall Width
8 11/16 in
Max. Diameter Solids
Clear Water
Discharge Dia.
1 in
Manufacturers Warranty Length
2 yr
Overall Length
13 3/8 in
Engine Size
25 cc
Discharge Diameter
1 in
Inlet Diameter
1 in
Solids Diameter - Maximum
0 in
Wire Rope Length
13 3/8 in
Length
13 3/8 in

Details

Max. Suction Lift
26 ft
RPM
3,600 RPM
Item
Water Pump
Maximum Self-Priming Lift
121 ft
Power Source
Gas Engine
Flow Rate @ 80 Ft. of Head
15 gpm
Inlet Standard
NPT
Ignition Type
Recoil-Start
Discharge
1 in NPT
Agency Compliance
EPA and CARB Certified Engine
Engine Brand
Honda
Inlet
1 in NPT
Max. Head
120 ft
Impeller Design
Open
Body Material
Aluminum
Inlet Gender
Male
Includes
Hose Clamps, Hose Connector, Intake Hose, Strainer
Flow Rate @ 60 Ft. of Head
20 gpm
Max. Liquid Temp.
130 Degrees F
Volute Material
Aluminum
Flow Rate @ 20 Ft. of Head
28 gpm
Tank Capacity
0.56 qt
Flow Rate @ 40 Ft. of Head
25 gpm
Seal Material
Carbon Ceramic
Frame Design - Pumps
Frame Rails with Top Handle
Maximum Discharge Pressure
52 psi
Weight
13 lb
Pump Mechanism
Centrifugal
Flow Rate @ 10 Ft. of Head
30 gpm
Discharge Standard
NPT
Discharge Gender
Male
Frame Material
Steel
HP
1 2/3 hp
Self-Priming Lift - Maximum
26 ft
Feet of Head - Maximum
121 ft
Discharge Pressure - Maximum
52 psi
For Media Type
Trash Water
Frame Design
Frame Rails with Top Handle
Flow Rate @ 20 ft of Head
28 gpm
Horsepower
1 2/3 hp
Standards
California Emissions Regulations, Canadian Emissions Regulations, CARB Certified Engine, EPA Certified Engine
Liquid Temperature - Maximum
130 Degrees F
Suction Lift - Maximum
26 ft
Series
Honda Water Pumps
Engine Series
GX25
Rotation Speed - Maximum
3,600 RPM
Flow Rate @ 10 ft of Head
32 gpm
Power Source - TS Only
Gas Engine
Power Source - old
Gas Engine

Description

Water Pump, Engine Size 25 cc, HP 1 2/3 hp, Tank Capacity 0.56 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Aluminum, Seal Material Carbon Ceramic, Frame Material Steel, Flow Rate @ 10 Ft. of Head 30 gpm, Flow Rate @ 20 Ft. of Head 28 gpm, Flow Rate @ 40 Ft. of Head 25 gpm, Flow Rate @ 60 Ft. of Head 20 gpm, Flow Rate @ 80 Ft. of Head 15 gpm, Max. Head 120 ft, Max. Suction Lift 26 ft, Maximum Self-Priming Lift 121 ft
