Commercial Thermostat - 24V, Touchscreen, BACnet, Wi-Fi/Bluetooth Enabled

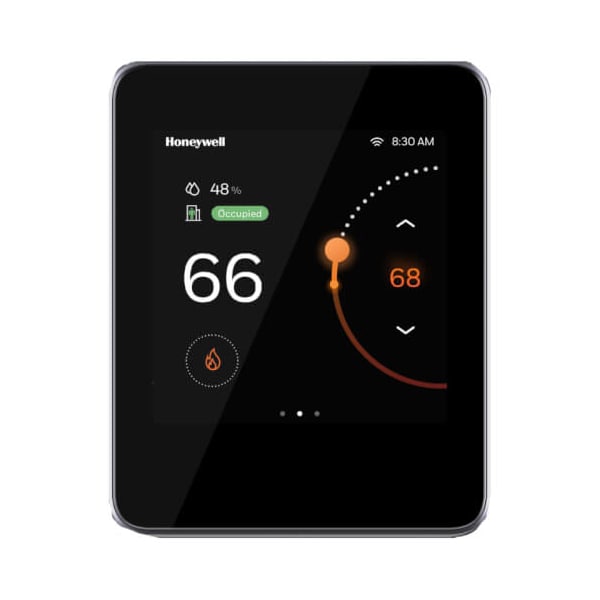

The Honeywell TC500A-N is a 24V commercial connected touchscreen thermostat intended for use in commercial building HVAC system management. It supports both conventional and heat pump systems, with or without economizer integration. The device provides remote access capability via the Honeywell ConnectMe mobile app, as well as compatibility with BAS integration via BACnet IP or BACnet MS/TP protocols. Configuration can be performed directly on the unit, through a mobile app, or using Niagara Tool.

Key features include:

• Color touchscreen interface with edge-to-edge glass and automatic sleep functionality
• Wireless and wired connectivity options: Wi-Fi, Bluetooth, BACnet IP/MS/TP, Sylk
• Supports RTU/AHU applications (5H/3C heat pump or 3H/4C conventional), modulating heating/cooling for select systems
• Modulating cooling output compatible with inverter type or Copeland digital scroll compressor controllers
• Configurable user privilege access levels including setpoint limits and scheduling lockouts
• Integrated economizer function supporting fault detection and differential temperature monitoring
• Flexible universal inputs/outputs to support various system configurations (2 inputs and 2 input/output ports)
• Weekly, holiday, and special event scheduling capabilities
