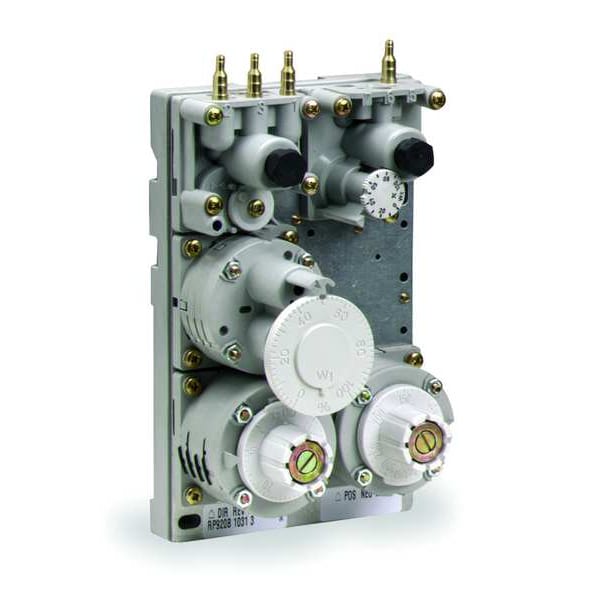

Honeywell Controller, Pneumatic RP920B1031 - main

Controller, Pneumatic

  • Mfr # RP920B1031

  • Zoro # G4846961

product price: $948.99
/ea
Free Shipping & Returns

Key Features

Type
Dual Input
Control Type
Field Selectable
Depth (In.)
3 3/8 in
Air Consumption
79.5 scim
Pressure (PSI)
17 to 30
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RP920B1031
Zoro #
G4846961
UPC #
-
Country of Origin
United States

Dimensions

Depth (In.)
3 3/8 in
Width (In.)
3 13/16 in
Height (In.)
5 7/8 in
Overall Width
3 13/16 in
Overall Length
5 7/8 in
Overall Depth
3 3/8 in

Details

Type
Dual Input
Item
Pneumatic Receiver Controller
Control Type
Field Selectable
Air Consumption
79.5 scim
Pressure (PSI)
17 to 30
Application
Integral Control of Temperature
Output
3 to 13
Authority
5 to 300% of primary Sensory span, adjustable
Compensation Start Point
0 to 100% of compensation Sensory span, adjustable
Air Consumption (SCFM)
0.07 scfm with 1 psi pressure drop at 18 psi main air supply
Operating Temp. Range (F)
17 to 30
Characteristics
High Capacity, Proportional, Single or Dual Input
Air Input Range (PSI)
3 to 15
Adjustable Integral Time - Minimum
30 sec
Number of Inputs
Dual Input
Operating Temperature - Maximum
130 Degrees F
Signal Pressure - Minimum
3 psi
Authority - Maximum
300 %
Authority - Minimum
5 %
Operating Humidity - Maximum
95 %
Control Signal
Proportional
Operating Temperature - Minimum
40 Degrees F
Operating Humidity - Minimum
5 %
Adjustable Integral Time - Maximum
20 min
Control Action
Direct Acting
Signal Pressure - Maximum
15 psi
Supply Pressure
15 psi

Description

Pneumatic Receiver Controller, Adjustable Integral Time - Maximum 20 min, Adjustable Integral Time - Minimum 30 sec, Air Consumption 79.5 scim, Application Integral Control of Temperature, Authority - Maximum 300 Percent, Authority - Minimum 5 Percent, Control Action Direct Acting, Control Signal Proportional, Inlet Port Connection Gender Not Applicable, Inlet Port Connection Size Not Applicable, Inlet Port Connection Type Not Applicable, Mounting Style Not Applicable
