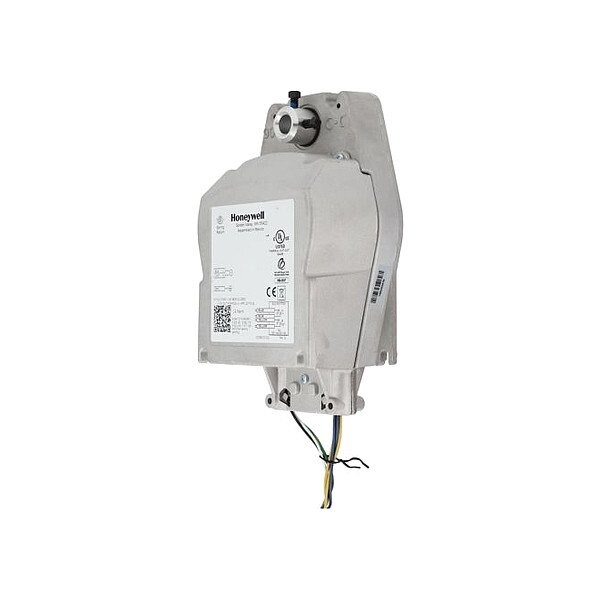

Shop HONEYWELL

Coupled Actuator, 5.125 in W

  • Mfr # MS4104F1210/U

  • Zoro # G116384961

product price:
$
484.99
/ea
Free Shipping & Returns

Key Features

Spring Return
Spring Return
Signal Type
On/Off
Power Rating
18W (Running); 9W (Holding)
Shaft Type
1/2" Round
Input Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MS4104F1210/U
Zoro #
G116384961
UPC #
085267023740
Country of Origin
Mexico
Spring Return
Spring Return
Signal Type
On/Off
Item
Coupled Actuator
Power Rating
18W (Running); 9W (Holding)
Shaft Type
1/2" Round
Input Voltage
120V AC
Stroke Degree
95 +/-3 Degrees
IP Rating
IP40
For Shaft Shape
Round
Product Type
Fire and Smoke Actuator
Weight
5 lb
Contact Form
SPST
Time to Open
15 sec
Application
Dampers
Standards
C-Tick, CE, UL 60730, UL/cUL
Rated Torque
30 in-lb
Fire Application Rating
Fire Application Rated
Valve Application
Damper
Smoke Application Rating
Smoke Application Rated
Minimum Operating Temperature
0 Degrees F
Electrical Connection Type
Hardwired
Shaft Rotation
CW/CCW
Housing Material
Aluminum
Time to Close
15 sec
Maximum Operating Temperature
130 Degrees F
Number of Auxiliary Switches
2

Description

Coupled Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 30 in-lb, Input Voltage 120V AC, Contact Form SPST, Electrical Connection Type Hardwired, IP Rating IP40, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 15 sec, Shaft Type 1/2 In. Round, Shaft Rotation CW/CCW, Stroke Degree 95 +/-3 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 130 Degrees F
