  9. Electric Actuator, 150 in.-lb., SPDT
Shop All Actuators and Damper Motors
Honeywell

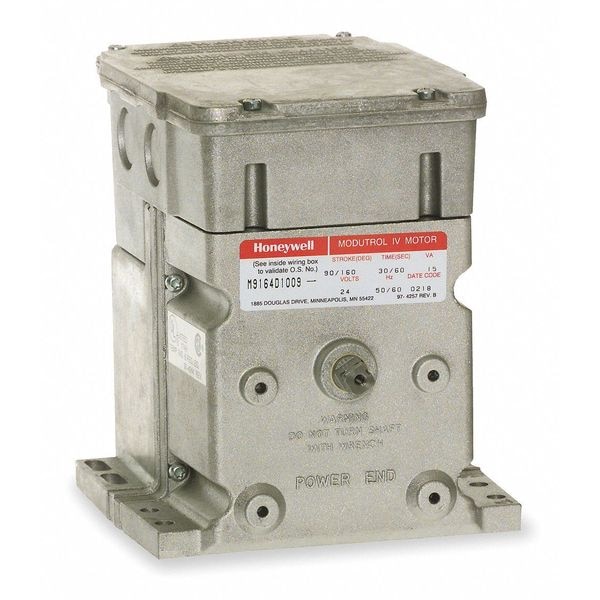

Electric Actuator, 150 in.-lb., SPDT

product price: $1,256.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Remote Mount
  • Spring Return Non-Spring Return
  • Signal Type Floating Point
  • Torque 150 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Depth 7 5/16 in
Height 6 7/16 in
Width 5 1/2 in
Overall Depth 7 3/8 in
For Shaft Height 3/8 in
Overall Width 5 1/2 in
Overall Height 6 1/2 in
For Shaft Width 3/8 in

Details

Mounting Type Remote Mount
Spring Return Non-Spring Return
Signal Type Floating Point
Torque 150 in-lb
Voltage 24V AC
Timing 30 to 60 sec
Item Actuator
Motor Direction CW or CCW
Switch Type SPDT
Replaces Honeywell Motors Mfr. No. M644A-E
Shaft Type Double-Ended
Power Consumption 17 VA
Includes Wiring Box
Ambient Temp. Range -40 Degrees to 140 Degrees F
Stroke Deg. 90 to 160
Electrical Connections Quick-connect Terminals
Time to Close 60 sec
Standards NEMA 3 wiring box, UL Listed and CSA Certified
Product Type Actuator
For Shaft Shape Square
Electrical Connection Type Hardwired
Maximum Operating Temperature 140 Degrees F
Shaft Rotation CW/CCW
Valve Application Damper and Valve
Stroke Degree 90 to 160 Degrees
Contact Form SPDT
Input Voltage 24V AC
Rated Torque 150 in-lb
Number of Auxiliary Switches 0
Minimum Operating Temperature -40 Degrees F
NEMA Rating 3
Application Dampers

Description

Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Rated Torque 150 in-lb, Input Voltage 24V AC, Contact Form SPDT, Electrical Connection Type Hardwired, NEMA Rating 3, Spring Return Non-Spring Return, Time to Close 60 sec, Shaft Type Double-Ended, Shaft Rotation CW/CCW, Stroke Degree 90 to 160 Degrees , Mounting Type Foot Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 1/2 in
