  8. Hazardous Location Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 480V AC, Actuator Location: Top

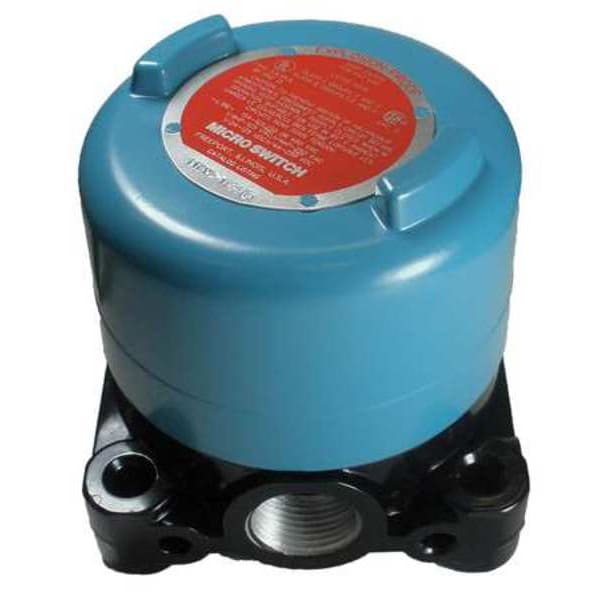

Honeywell Hazardous Location Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 480V AC, Actuator Location: Top 11CX2 - main

Hazardous Location Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 480V AC, Actuator Location: Top

  • Mfr # 11CX2

  • Zoro # G4023643

product price:  $1,547.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11CX2
Zoro #
G4023643
UPC #
-
Country of Origin
United States

Dimensions

Body Height - Limit Switch
4.0 in
Body Depth - Limit Switch
4.09 in
Height
4.00"
Width
4.00"
Depth
4.09"
Body Width - Limit Switch
4.0 in
Mounting Hole Diameter
0.33 in
Body Depth
4.09 in
Body Height
4 in
Body Width
4 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 480V
DC Contact Rating - Limit Switch
0.02A at 250V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Rotary, No Lever
Wiring Entry
3/4 in NPT
Basic Actuator Style (Limit Switch)
Rotary
Movement
CCW, CW
IP Rating
IP66, IP67
Series
CX
Limit Switch Style
Hazardous Location Limit Switch
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Top
Actuator Location
Top
AC Contact Rating
15 A @ 480 V
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
NEMA Rating
1, 13, 3, 4, 4X, 6, 6P, 7
Travel
Differential Travel 10 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 90 Degrees
Actuator Style
Rotary Lever
Body Style (Limit Switch)
Standard
Mounting Hole - Limit Switch
(4) 0.33 in dia
Contact Form - Limit Switch
1NC/1NO
DC Contact Rating
0.02 A @ 250 V
Contact Form
1NO/1NC
Certification
Class I, Division1, Groups C, D), 9 (Class II, Division1, Groups E, F,G)
Electrical Connection
Screw Terminals
Body Material
Aluminum
Voltage Rating
120/250/480VAC/120/250VDC
Number of Poles
1
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
Operating Force
0.92 ft-lb
Standards
CSA, UL Listed
Mounting Hole Spacing - Limit Switch
3.15 in x 3.15 in
Operating Temp. Range
-13 Degrees to 185 Degrees F
Amps
15 Ind./0.5 Res./0.25 Res.
Differential Travel
10 Degrees
Pretravel
15 Degrees
Operating Temperature - Minimum
-13 Degrees F
Includes Actuator
No Actuator Included
Directional Movement
CCW/CW
Mounting Hole Horizontal Center to Center Distance
80 mm
Action
Momentary
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface
Operating Torque - Maximum
11.1 in-lb
Overtravel
90 Degrees
Operating Temperature - Maximum
185 Degrees F
Number of Mounting Holes
4
Mounting Hole Vertical Center to Center Distance
80 mm
NEMA Enclosure Rating
1, 13, 3, 4, 4X, 6, 6P, 7

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 480V, DC Contact Rating - Limit Switch 0.02A @ 250V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 4 in, Body Width - Limit Switch 4 in, Body Depth - Limit Switch 4.09 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 13, 3, 4, 4X, 6, 6P, 7, Mounting - Limit Switch Surface
