  15. Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

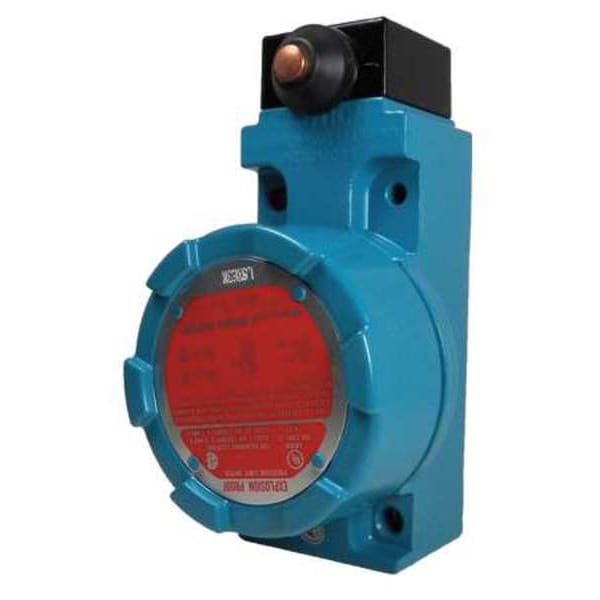

Honeywell Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side LSXE3K - main

Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # LSXE3K

  • Zoro # G3906567

product price: $1,231.99
/ea
Sold in multiples of 10 for $12,319.90
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSXE3K
Zoro #
G3906567
UPC #
-
Country of Origin
United States

Dimensions

Body Height - Limit Switch
4.75 in
Depth
2.44"
Actuator Length
1.30"
Body Depth - Limit Switch
2.44 in
Roller Width
0.19 in
Actuator Length - Limit Switch
1.3 in
Height
5.75"
Width
2.00"
Body Width - Limit Switch
2.0 in
Mounting Hole Diameter
0.2 in
Body Depth
2.44 in
Body Height
4.75 in
Body Width
2 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
IP Rating
No IP Rating
Mounting Hole - Limit Switch
(2) 0.20 in dia
Electrical Connection
Screw Terminals
Actuator Style
Plunger
Wiring Entry
1/2"-14 NPT
Limit Switch Style
Hazardous Location Limit Switch
NEMA Rating
1, 13, 3, 4, 6, 7
AC Contact Rating
10A at 600V
Travel
Differential Travel 0.045 in, Maximum Pretravel 0.10 in, Minimum Over Travel 0.19 in
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Body Style (Limit Switch)
Standard
Movement
Linear, Side
Operating Force
6.0 in-lb
Contact Form
1NC/1NO, SPDT
Boot Sealed Actuator - Limit Switch
No
Voltage Rating
600VAC/250VDC
Actuator Style (Limit Switch)
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Actuator Location (Limit Switch)
Side
Body Material
Aluminum
DC Contact Rating
10A at 250V
Series
LSX
Boot Sealed Actuator (Limit Switch)
No
Actuator Location
Side
Certification
Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G
Number of Poles
1
Basic Actuator Style (Limit Switch)
Plunger
Standards
CSA, UL
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
1NC/1NO
Amps
10
Operating Temp. Range
10 Degrees to 250 Degrees F
Differential Travel
0.05 in
Directional Movement
Linear
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
86 mm
Body Configuration
Non Plug-In
Action
Momentary
Mounting Hole Horizontal Center to Center Distance
29 mm
Pretravel
0.1 in
Operating Temperature - Maximum
250 Degrees F
Overtravel
0.19 in
NEMA Enclosure Rating
1, 13, 3, 4, 6, 7
Mounting Style
Surface
Operating Temperature - Minimum
10 Degrees F
Operating Force - Maximum
6 lbf
Boot Sealed Actuator
No Boot Included

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 4.75 in, Body Width - Limit Switch 2 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 13, 3, 4, 6, 7
