  15. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

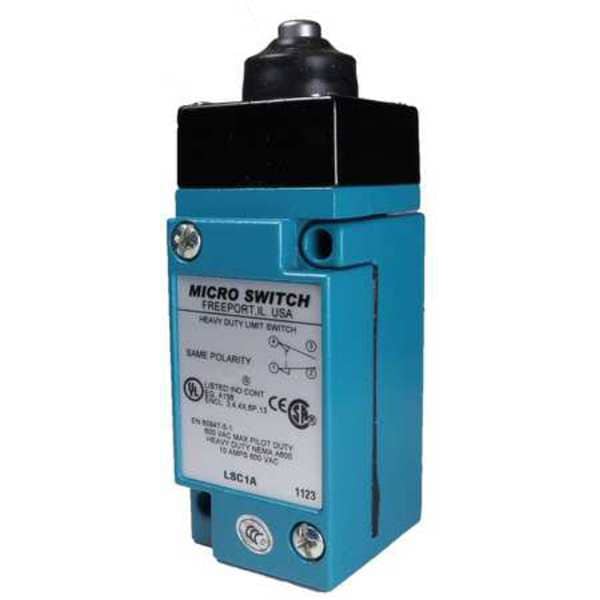

Honeywell Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top LSC1A - main

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # LSC1A

  • Zoro # G4027922

product price: $246.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSC1A
Zoro #
G4027922
UPC #
-
Country of Origin
United States

Dimensions

Width
1.62"
Body Depth - Limit Switch
1.75 in
Depth
1.75"
Actuator Length
1.81"
Height
4.20"
Body Width - Limit Switch
1.62 in
Actuator Length - Limit Switch
1.81 in
Body Height - Limit Switch
2.95 in
Connection Size
1/2 in. NPT
Body Height
2.95 in
Overall Height
4.2 in
Overall Width
1.62 in
Mounting Hole Diameter
0.2 in
Overall Depth
2.44 in
Body Width
1.62 in
Body Depth
1.75 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
NEMA Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Travel
Differential Travel 0.015 in, Maximum Pretravel 0.07 in, Minimum Over Travel 0.19 in
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location
Top
Body Material
Zinc
Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Contact Form - Limit Switch
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Actuator Style
Plunger
IP Rating
IP65, IP66, IP67
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
DC Contact Rating
10 A @ 250 V
Series
HDLS
Contact Form
1NO/1NC
Voltage Rating
600VAC/250VDC
Wiring Entry
1/2"-14 NPT
Boot Sealed Actuator - Limit Switch
No
Operating Force
4.0 in-lb
Amps
10
Boot Sealed Actuator (Limit Switch)
No
Actuator Location (Limit Switch)
Top
Stem Thread - Limit Switch
No Stem
Limit Switch Style
Heavy Duty Limit Switch
Number of Poles
1
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Electrical Connection
Screw Terminals
Standards
CCC, CE, CSA, UKCA, UL Listed
Movement
Linear
Operating Temp. Range
10 Degrees to 200 Degrees F
AC Contact Rating
10 A @ 600 V
Differential Travel
0.02 in
Connection Type
Threaded Entry
Current Rating - nominal
10A
Differential-Travel - Travel To Reset
0.015 in (0.38mm) DT
Body Construction
Die Cast Zinc
Pre-Travel - Travel To Operate
0.07 in (1.78mm) PT
Rating - NEMA
NEMA 4X,6P
Poles/Contacts
SPDT 1NO 1NC
Operator Configuration
Standard
Operating Temperature - min
10 deg F (-12 deg C)
Head/Operator
Top Push Button
Head Action
Spring Return, Standard
Operating Temperature - max
200 deg F (94 deg C)
Electrical Rating - VAC/DC
10A 600Vac (Vdc Rated)
Type
Heavy Duty Plug-In Limit Switch
Over-Travel/Total-Travel
0.19 in (4.83mm) OT
Directional Movement
Linear
Operating Temperature - Maximum
250 Degrees F
Plunger Adjustability
Adjustable
Mounting Hole Horizontal Center to Center Distance
60 mm
Action
Momentary
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Operating Force - Maximum
17.8 N
Operating Temperature - Minimum
10 Degrees F
Mounting Hole Vertical Center to Center Distance
30 mm
Body Configuration
Plug-In
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Pretravel
0.07 in
Overtravel
0.19 in
Resistance Properties
Corrosion Resistant
Mounting Style
Surface

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.81 in, Body Height - Limit Switch 2.95 in, Body Width - Limit Switch 1.62 in, Body Depth - Limit Switch 1.75 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 3, 4, 4X, 6, 6P
