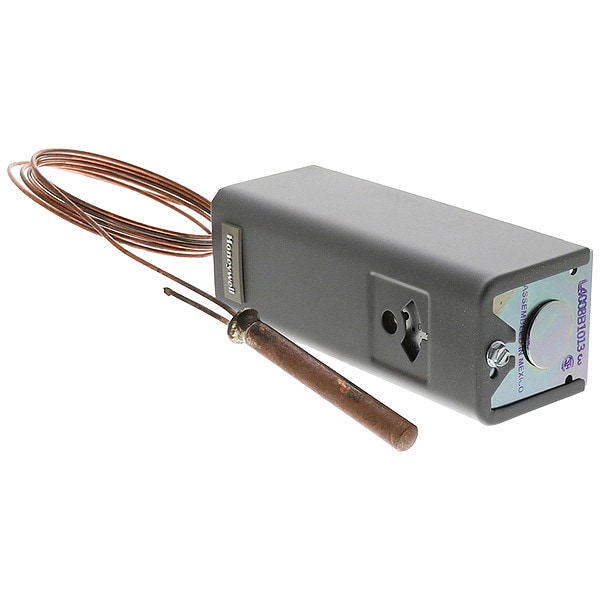

AQUASTAT MAKES ON RISE 100-240F, 5-30F AD
Mfr # L4008B1013
Zoro # G6328788
product price:Â $220.99
/ea
Free Shipping & Returns
Key Features
Includes
5 1/2 ft Capillary
Standards
LR95329-1, MBPR2, MP466, UL Listed
Application
Circulator
Product Type
Circulator Controller
Overall Height
5 5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- L4008B1013
- Zoro #
- G6328788
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 5 5/8 in
- Overall Depth
- 2 1/8 in
- Overall Width
- 2 in
- Capillary Tube Length
- 66 in
Details
- Item
- Circulator Controller
- Includes
- 5 1/2 ft Capillary
- Standards
- LR95329-1, MBPR2, MP466, UL Listed
- Application
- Circulator
- Product Type
- Circulator Controller
- Full Load Current @ 120V AC
- 8 A
- Differential Temperature
- 5 Degrees F to 30 Degrees F Adjustable
- Maximum Control Temperature
- 240 Degrees F
- Switch Action
- Makes
- Sensor Location
- Remote
- Locked Rotor Current @ 240V
- 30.6 A
- Reset Type
- Automatic Reset
- Full Load Current @ 240V AC
- 5.1 A
- Auto/Manual Switch Included
- Yes
- Locked Rotor Current @ 120V
- 48 A
- Minimum Control Temperature
- 100 Degrees F
- Number of Switches
- 1
- Burner Circuit Voltage Type
- Millivolt
- Contact Form
- SPST
- Mounting Orientation
- Horizontal, Vertical
Description
Circulator Controller, Application Circulator, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 100 Degrees F, Differential Temperature 5 Degrees F to 30 Degrees F Adjustable, Mounting Orientation Horizontal, Vertical, Number of Switches 1, Switch Action Makes, Burner Circuit Voltage Type Millivolt, Capillary Tube Length 66 in, Spud Size Not Applicable, Contact Form SPST, Multizone Control Compatible Not Applicable, Product Type Circulator Controller, Sensor Location Remote
