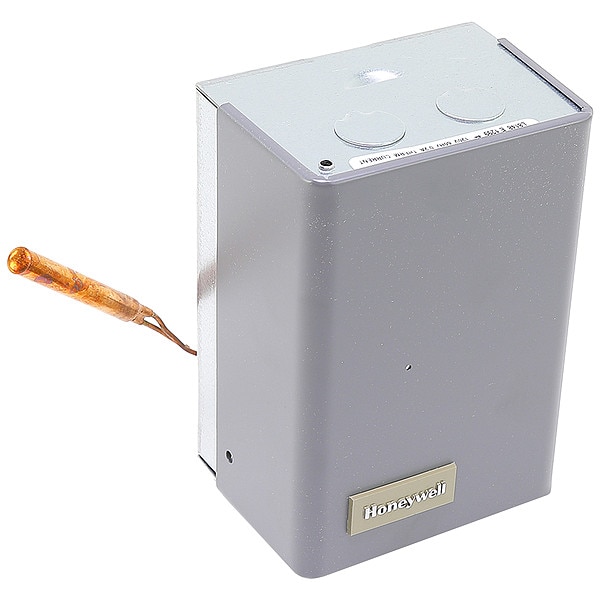

DUAL AQAUSTAT RELAY WITH MOLEX PLUG. 120

  • Mfr # L8148E1299
  • Zoro # G6401904
product price:
$
416.99
/ea
Free Shipping & Returns

Key Features

Includes
Heat-Conductive Compound
Standards
LR95329-1, MBPR2, MP466, UL Listed
Application
High Limit
Product Type
Immersion Controller
Locked Rotor Current @ 120V
44.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L8148E1299
Zoro #
G6401904
UPC #
-
Country of Origin
United States

Dimensions

Capillary Tube Length
4 1/2 in
Overall Width
4 3/8 in
Overall Depth
3 1/8 in
Overall Height
6 1/8 in
Insulation Depth
1 1/2 in, 3 in

Details

Item
Immersion Controller
Includes
Heat-Conductive Compound
Standards
LR95329-1, MBPR2, MP466, UL Listed
Application
High Limit
Product Type
Immersion Controller
Locked Rotor Current @ 120V
44.4 A
Minimum Control Temperature
180 Degrees F
Full Load Current @ 240V AC
3.7 A
Locked Rotor Current @ 240V
22.2 A
Number of Switches
7
Input Voltage
120V AC
Burner Circuit Voltage Type
Low Voltage
Maximum Control Temperature
240 Degrees F
Power Consumption
50 VA
Sensor Location
Remote
Contact Form
SPST
Differential Temperature
15 Degrees F Fixed
Reset Type
Automatic Reset
Mounting Orientation
Vertical
Full Load Current @ 120V AC
7.4 A
Auto/Manual Switch Included
Yes

Description

Immersion Controller, Application High Limit, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 180 Degrees F, Differential Temperature 15 Degrees F Fixed, Mounting Orientation Vertical, Number of Switches 7, Burner Circuit Voltage Type Low Voltage, Capillary Tube Length 4 1/2 in, Spud Size Not Applicable, Contact Form SPST, Multizone Control Compatible Not Applicable, Product Type Immersion Controller, Sensor Location Remote, Auto/Manual Switch Included Yes
