  5. Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Standard Opening, 0.7 A, 0 to 175 Degrees F

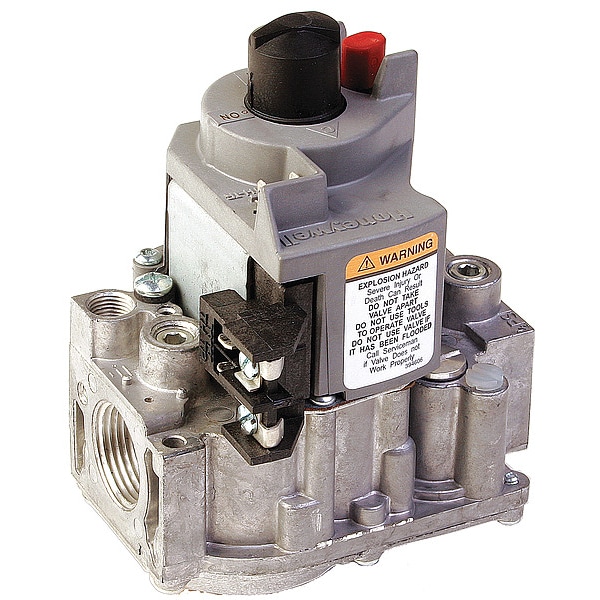

Honeywell Home Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Standard Opening, 0.7 A, 0 to 175 Degrees F VR8300A4516 - main

Gas Valve, NG/LP, Standing Pilot, 24 V, 3.5 in wc, Standard Opening, 0.7 A, 0 to 175 Degrees F

  • Mfr # VR8300A4516

  • Zoro # G3400862

product price:  $196.99
/ea
Free Shipping & Returns

Key Features

BtuH Capacity
200,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Inlet Size
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VR8300A4516
Zoro #
G3400862
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Port Connection Size
3/4 in
Overall Depth
2 11/16 in
Pressure Tap Connection Size
1/8 in
Overall Height
5 3/8 in
Overall Length
4 1/16 in

Details

BtuH Capacity
200,000 BtuH
Coil Volts
24 V
Gas Type
NG/LP
Ignition Type
Standing Pilot
Reducer Bushing Kit
(2) 3/4 x 1/2 in
Valve Type
Standard Opening
For Use With
Gas Fired Appliances
Amps AC
0.7 A
Ambient Temp. Range
0 to 175 Degrees F
Item
Gas Valve
LP Conversion Kit
Yes
Pressure Setting Range
3.5 in wc
Flow Direction
Straight-Thru
Includes
(2) 3/4 x 1/2 in Reducer Bushings, 36 in Thermocouple with Adapters, ECO adapter, Natural to LP Gas Conversion Kit
Max. Inlet Pressure
1/2 psi
Inlet Pressure Tap
Yes
Standards
CSA International: 112395, UL Component Recognized MCCZ2.MH5323, Australian Gas Association: 4717
Side Taps
No
Port Connection Type
NPT
Installation Orientation
Vertical
Operating Temperature - Maximum
175 Degrees F
Includes Pressure Regulator
Pressure Regulator Included
Includes Pressure Tap
Pressure Tap Inlet Included, Pressure Tap Outlet Included
Sensing Type
Flame Sensor
Manufacturer Series
VR8300
Pilot Type
Standing Pilot
Opening Characteristic
Fast Opening
Heating Capacity - Maximum
300,000 BtuH
Valve Design
Dual
Operating Temperature - Minimum
0 Degrees F
Voltage
24V AC
Includes Side Taps
Side Taps Not Included
Includes Conversion Kit
Conversion Kit Included
Electrical Connections
Quick Connect Terminal
Includes Pilot Generator Kit
Pilot Generator Kit Not Included
Current
0.7 A
Pressure Tap Connection Type
NPT
Includes Thermostat
Mechanical Thermostat Not Included
Reducer Bushings Included
(2) 3/4 x 1/2 in
Port Connection Gender
Female
For Media
Liquid Propane, Natural Gas

Description

Gas Valve, Current 0.7 A, Electrical Connections Quick Connect Terminal, Flow Direction Straight-Thru, For Media Liquid Propane, Natural Gas, Heating Capacity - Maximum 300,000 BtuH, Includes Conversion Kit Conversion Kit Included, Includes On/Off Switch Not Applicable, Includes Pilot Generator Kit Pilot Generator Kit Not Included, Includes Pressure Regulator Pressure Regulator Included, Includes Pressure Tap Pressure Tap Inlet Included, Pressure Tap Outlet Included
