  11. Low Voltage Thermostat, 1 H, Hardwired, 24VAC

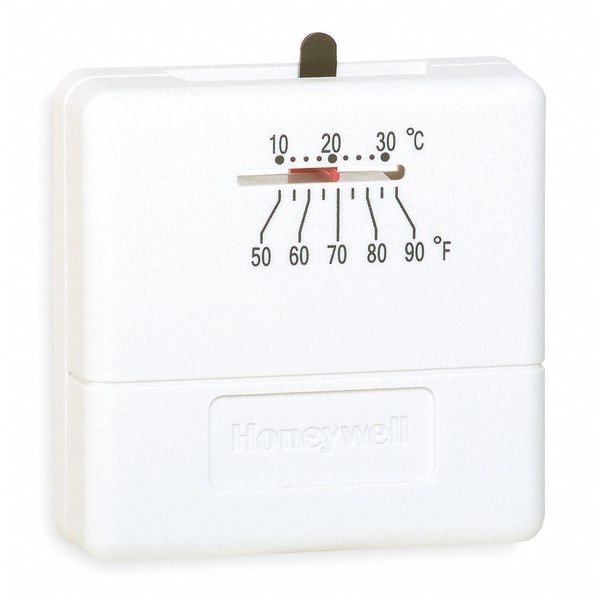

Honeywell Home Low Voltage Thermostat, 1 H, Hardwired, 24VAC T812A1002 - main

Low Voltage Thermostat, 1 H, Hardwired, 24VAC

  • Mfr # T812A1002

  • Zoro # G1176305

product price: $27.25
/ea

Key Features

Voltage
24VAC
Stages Heat
1
Mounting Type
Square
Color
Premier White
Control Range
50 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T812A1002
Zoro #
G1176305
UPC #
-
Country of Origin
China

Dimensions

Height
3"
Width
3"
Depth
1 1/4 in
Overall Depth
7/8 in
Overall Width
3 1/8 in
Overall Height
3 1/8 in
Digit Size
Standard

Details

Item
Low Voltage Thermostat
Voltage
24VAC
Stages Heat
1
Mounting Type
Square
Color
Premier White
Control Range
50 Degrees to 90 Degrees F
System Switching
SPST
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
No
Features
Mercury Free
Automatic Changeover
No
Fan Switching
No
Mounting
Horizontal
Terminal Designations
R, W
For Use With
Gas, Oil, Forced Air
Battery Backup
No
Humidification Control
No
Dehumidification Control
No
Temporary Temperature Hold
No
Key Pad Lockout
No
Includes
Dealer Logo Pocket
Temporary Program Override
No
Temperature Limiting
No
Display Type
Analog
Control Type
Slide Switch
Type
Mechanical Nonprogrammable Conventional Systems
Stages
1H Conventional
Includes Positive Off
No
Number of Cooling Stages - Conventional System
0
Mercury Free
Yes
Temperature Control Range
50 Degrees to 90 Degrees F
Temperature Sensitivity
+/-3 Degrees F
Millivolt Compatible
No
Housing Color
White
Thermostat Type
Low Voltage
Contact Type
Snap Action
Minimum Control Temperature
50 Degrees F
Mounting Direction
Vertical
Temperature Scale
Fahrenheit
Maximum Control Temperature
90 Degrees F
Application
Heat Only
Fan Settings
No Fan Setting
System Settings
On
Electrical Connection Type
Hardwired
Operating Humidity Range
0% to 90%
Minimum Operating Humidity
0 %
Maximum Operating Humidity
90 %
Mounting Direction/Shape
Square
System/Fan Settings
On/No Fan Setting
Number of Cooling Stages - Heat Pump System
0
Shape
Square
Temperature Readout
No
Number of Heating Stages - Heat Pump System
0
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces
Number of Heating Stages - Conventional System
1

Description

Low Voltage Thermostat, Terminal Designations R, W, System Switching No, Fan Switching No, Automatic Changeover No, Dual Transformer Compatible No, Power Method Hardwired, Voltage 18 to 30V AC, 750mV Compatible No, Mounting Horizontal, Height 3 in, Width 3 in, Depth 1 1/4 in, Color White, Control Range 50 Degrees to 90 Degrees F, Features Mercury Free, For Use With Gas, Oil, Forced Air, Includes Dealer Logo Pocket
