This item is Discontinued.

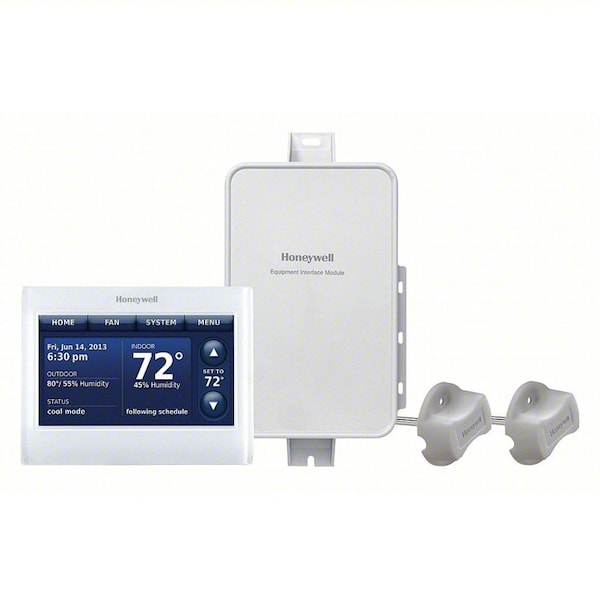

Honeywell Home Low Voltage Thermostat, 7 Programs, 4 Heat Pump or 3 Conventional H, 2 C, Hardwired, 18 to 30V AC YTHX9421R5085WW

Low Voltage Thermostat, 7 Programs, 4 Heat Pump or 3 Conventional H, 2 C, Hardwired, 18 to 30V AC (Discontinued)

  • Mfr # YTHX9421R5085WW
  • Zoro # G4828630
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YTHX9421R5085WW
Zoro #
G4828630
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 1/2"
Width
4 1/2"
Depth
7/8 in
Overall Height
3 1/2 in
Overall Width
4 1/2 in
Digit Size
Standard
Overall Depth
7/8 in

Details

Item
Low Voltage Thermostat
Voltage
18 to 30V AC
Stages Heat
4 Heat Pump or 3 Conventional
Color
White
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
No
Power Method
Hardwired
750mV Compatible
No
Programs per Week
7
Automatic Changeover
Yes
Battery Backup
No
Dehumidification Control
Yes
Temperature Limiting
Yes
Includes
Portable Comfort Control, Equipment Interface Module and 2 Duct Sensor, Truesteam Humidifier With Wireless Adapter And Truezone Zoning Panel With Wireless Adapter, Wireless Entry/Exit
Temporary Program Override
Yes
Programmable Fan
Yes
Batteries Included
Yes
Key Pad Lockout
Yes
Filter Indicator
Yes
Temporary Temperature Hold
Yes
Low Battery Indicator
Yes
Temp. Settings per Day
4
For Use With
RedLINK(TM) Accessories
Terminal Designations
A, A-L/A, B, C, D, G, R, RC, RH, S1, S2, S3, S4, U1, U2, U3, W-O/B, W2-AUX1, W3-AUX2, Y, Y2
Fan Switching
Auto-On-Program-Circulate
Humidification Control
Yes
WiFi Capability
No
Housing Color
White
Standards
Energy Star
Display Type
Tri-Lingual
Application
Heat and Cool
Control Type
Touch Screen
Mounting
Horizontal
Type
Digital Programmable
Occupancy Sensor
Compatible with Occupancy Sensor
Stages
3H/2C Conventional, 4H/2C Heat Pump
Mounting Direction/Shape
Horizontal
Number of Zones
1
Number of Heating Stages - Conventional System
3
Wireless System Compatibility
RedLink
Temperature Sensitivity
+/-1 Degrees F
Temperature Scale
Fahrenheit/Celsius
Temperature Control Range
40 Degrees to 99 Degrees F
Includes Batteries
Yes
Millivolt Compatible
No
Sensor Location
Remote
Temperature Differential
1 Degrees F
Minimum Operating Temperature
32 Degrees F
Frequency
50 Hz, 60 Hz
Programming Capability
7 Day
Maximum Operating Temperature
120 Degrees F
Compatible System Type
Heat Pump with Aux
Operating Temperature Range
32 Degrees to 120 Degrees F
Temperature settings per day
4
Number of Cooling Stages - Heat Pump System
2
Application/Stages
Heat and Cool; 3H/2C Conventional, 4H/2C Heat Pump
Mounting Direction
Horizontal
Thermostat Type
Low Voltage
Shape
Rectangle
Electrical Connection Type
Screw Terminals
Minimum Control Temperature
40 Degrees F
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Contact Rating
18 to 30V AC
Minimum Operating Humidity
5 %
Wireless
No
Fan Settings
Auto-Circulate-On
Changeover Type
Automatic and Manual
Differential Type
Adjustable
Filter Change Reminder
Yes
Number of Cooling Stages - Conventional System
2
Maximum Control Temperature
99 Degrees F
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Operating Humidity Range
5% to 90% RH
Maximum Operating Humidity
90 %
Temperature Readout
Yes
Includes Positive Off
Yes
Number of Heating Stages - Heat Pump System
4

Description

Low Voltage Thermostat, Stages Heat 4 Heat Pump or 3 Conventional, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations A, A-L/A, B, C, D, G, R, RC, RH, S1, S2, S3, S4, U1, U2, U3, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On-Program-Circulate, Display Type Tri-Lingual, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control Yes
