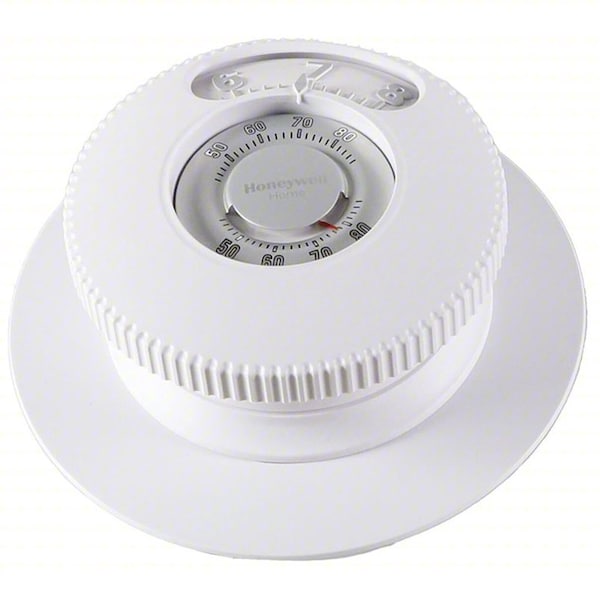

Honeywell Home Manual Thermostat, 1 H, 1 C, Battery Assisted Power Stealing, 20/30VAC T87N1026 - main
Shop HONEYWELL HOME

Manual Thermostat, 1 H, 1 C, Battery Assisted Power Stealing, 20/30VAC

  • Mfr # T87N1026

  • Zoro # G1730181

product price:  $104.99
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Round
Color
Premier White
Control Range
40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T87N1026
Zoro #
G1730181
UPC #
-
Country of Origin
Mexico

Dimensions

Height
1-3/4"
Width
4"
Depth
1 3/4 in
Diameter
3 1/4 in
Digit Size
Standard
Overall Width
4 in
Overall Diameter
3 1/4 in
Overall Depth
1 3/4 in

Details

Item
Manual Thermostat
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Round
Color
Premier White
Control Range
40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Battery Assisted Power Stealing
750mV Compatible
No
Fan Switching
Auto-On
Mounting
Round
Terminal Designations
B, G, O, R, RC, W, Y
Features
Mercury Free, Easy-to-See Model with Large Raised Markings and a Click at Each 2 Degrees Setpoint Change
Includes
Switch Position Label
For Use With
Gas, Oil, Forced Warm Air, Hot Water, Steam or Gravity
Display Type
Analog
Battery Backup
No
Dehumidification Control
No
Humidification Control
No
Key Pad Lockout
No
Type
Mechanical Nonprogrammable Conventional Systems or HP
Stages
1H/1C Conventional, 1H/1C Heat Pump
Control Type
Exposed Dial
System Settings
Cool-Heat-Off
System/Fan Settings
Heat-Off-Cool/Auto-On
Temperature Control Range
40 Degrees to 90 Degrees F
Application
Heat and Cool
Thermostat Type
Low Voltage
Mercury Free
Yes
Millivolt Compatible
No
Housing Color
White
Mounting Direction/Shape
Round
Frequency
50 Hz, 60 Hz
Number of Cooling Stages - Heat Pump System
1
Number of Cooling Stages - Conventional System
1
Includes Positive Off
Yes
Number of Heating Stages - Conventional System
1
Maximum Operating Humidity
90 %
Mounting Direction
Vertical
Minimum Operating Humidity
5 %
Minimum Control Temperature
40 Degrees F
Temperature Sensitivity
+/-2 Degrees F
Maximum Control Temperature
90 Degrees F
Temperature Scale
Fahrenheit
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems
Operating Humidity Range
5% to 90%
Shape
Round
Electrical Connection Type
Hardwired
Fan Settings
Auto-On
Changeover Type
Manual
Number of Heating Stages - Heat Pump System
1
Temperature Readout
Yes

Description

Low Voltage Thermostat, Terminal Designations B, G, O, R, RC, W, Y, System Switching Heat-Cool-Off, Fan Switching Auto-On, Dual Transformer Compatible Yes, Power Method Hardwired, Voltage 20 to 30V AC, 750mV Compatible No, Mounting Round, Depth 1 3/4 in, Diameter 3 1/4 in, Color White, Control Range 40 Degrees to 90 Degrees F, Features Mercury Free, Easy-to-See Model with Large Raised Markings and a Click at Each 2 Degrees Setpoint Change

Restrictions

This item has been restricted from sale in the following states: CO
