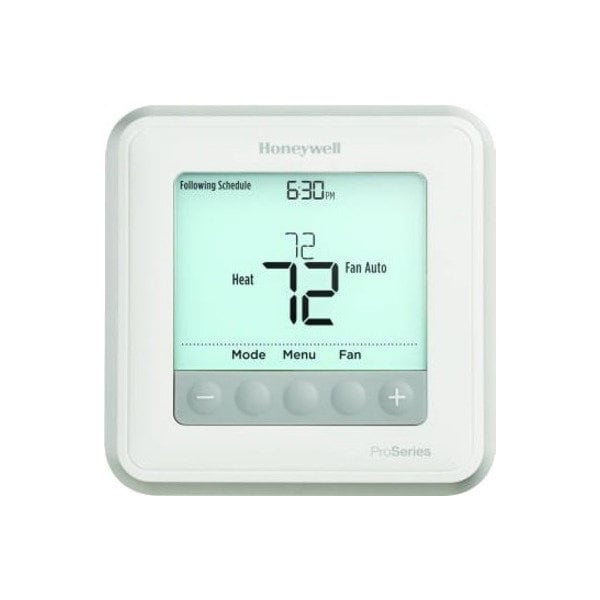

Honeywell Home Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 2 H, 2 C, Wall Mount, Hardwired/Battery, 20/30VAC TH6220U2000/U - main

Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 2 H, 2 C, Wall Mount, Hardwired/Battery, 20/30VAC

  • Mfr # TH6220U2000/U

  • Zoro # G7826065

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
2
Mounting Type
UWP Mounting System
Mounting Location
Wall
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TH6220U2000/U
Zoro #
G7826065
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2 9/32"
Width
5"
Display Size
5.44 sq in
Depth
6 in
Overall Height
4 1/16 in
Overall Depth
1 7/16 in
Overall Width
4 1/16 in
Digit Size
Standard
Screen Width
5 1/2 in
Screen Height
5 1/2 in

Details

Item
Programmable Thermostat
Voltage
20/30VAC
Stages Heat
2
Mounting Type
UWP Mounting System
Mounting Location
Wall
Color
White
Control Range
Heat 40 Degrees F to 90 Degrees F; Cool 50 Degrees F to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
No
Programs per Week
7, 5-2, 5-1-1
Battery Backup
Yes
Key Pad Lockout
Yes
Features
Programmable, Universal Mounting
Dehumidification Control
No
Temporary Temperature Hold
Yes
WiFi Capability
No
Filter Indicator
No
Low Battery Indicator
Yes
Footnotes
1, 3, 6, 7
Temperature Limiting
No
Batteries Included
Yes
Programmable Fan
Yes
Display Color
Blue
Temp. Settings per Day
0, 1, 2, 4
Terminal Designations
AUX, C, E, G, K, L/A, O/B, R, RC, S, U, W, W2, Y, Y2
Automatic Changeover
Yes
Remote Sensing Capability
Yes
Fan Switching
Yes
Temporary Program Override
Yes
Humidification Control
No
Display Type
Digital
For Use With
Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Efficiency Furnace, Heat Pumps, Steam, Gravity
Includes
Installation (J-box) Adaptor, Installation Guide, Mounting Hardware, Small Decorative Cover Plate, User Guide and (2) AA Batteries, UWP Mounting System
Control Type
Push Button
Stages
2H/2C Conventional, 2H/1C Heat Pump
Minimum Operating Temperature
32 Degrees F
Changeover Type
Automatic
Minimum Control Temperature
40 Degrees F
Number of Cooling Stages - Conventional System
2
Frequency
50 Hz, 60 Hz
Shape
Square
Operating Humidity Range
5% to 90% RH
Temperature Control Range
40 Degrees to 99 Degrees F
Contact Rating
20/30V AC
Electrical Connection Type
Hardwired
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Maximum Control Temperature
99 Degrees F
Compatible System Type
Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Electric Forced Air Furnaces
Number of Cooling Stages - Heat Pump System
1
Temperature settings per day
0, 1, 2, 4
Maximum Operating Humidity
90 %
Mounting Direction
Horizontal
Number of Zones
1
Minimum Operating Humidity
5 %
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Temperature Scale
Fahrenheit/Celsius
Temperature Readout
Yes
Includes Positive Off
Yes
Number of Heating Stages - Heat Pump System
2
Millivolt Compatible
No
Application/Stages
Heat and Cool; 2H/2C Conventional, 2H/1C Heat Pump
Maximum Operating Temperature
120 Degrees F
Housing Color
White
Mounting Direction/Shape
Square
Backlit Screen
Yes
Programming Capability
5-1-1, 5-2, 7 Day
Sensor Location
Remote
Filter Change Reminder
No
Fan Settings
Auto-Circulate-On
Includes Batteries
Yes
Application
Heat and Cool
Number of Heating Stages - Conventional System
2
Temperature Differential
1 Degrees F
Thermostat Type
Low Voltage
Operating Temperature Range
32 Degrees to 120 Degrees F
Backlit Screen Color
Blue

Description

Low Voltage Thermostat, Stages Heat 2, Stages Cool 2, Temp. Settings per Day 0, 1, 2, 4, Programs per Week 7, 5-2, 5-1-1 or Nonprogrammable, Terminal Designations AUX, C, E, G, K, L/A, O/B, R, RC, S, U, W, W2, Y, Y2, WiFi Capability No, System Switching Yes, Fan Switching Yes, Display Size 5.44 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control No, Remote Sensing Capability Yes
