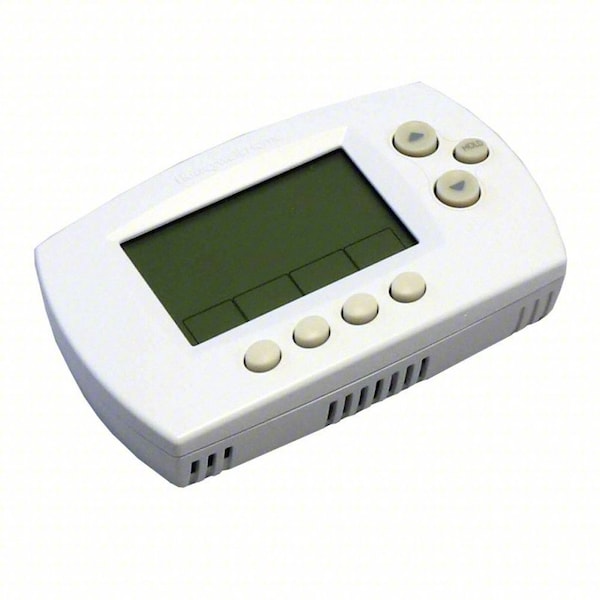

Honeywell Home Part, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC TH6320R1004 - main

Part, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC

  • Mfr # TH6320R1004

  • Zoro # G4864960

product price: $255.99
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH6320R1004
Zoro #
G4864960
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3 9/16"
Width
5 13/16"
Depth
1 1/2 in
Overall Width
5 13/16 in
Overall Height
3 9/16 in
Overall Depth
1 1/2 in
Digit Size
Standard

Details

Item
Part
Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
No
Power Method
Battery
Programs per Week
5-1-1 or 5-2
Temp. Settings per Day
4
Display Type
Digital
Includes
Mfr.No.TH6320R1004 Thermostat and (2) AA Thermostat Batteries
Humidification Control
No
WiFi Capability
No
Programmable Fan
No
Low Battery Indicator
Yes
Terminal Designations
C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Fan Switching
Auto-On
Features
5-1-1 Programmable
Key Pad Lockout
No
For Use With
Heating, Cooling Systems Enabled with RedLink(TM) Zoning Panels
Battery Backup
Yes
Application
Heat and Cool
Control Type
Push Button
Type
Replacement
Dehumidification Control
No
Sensor Type
Thermistor
Stages
2H/2C Conventional, 3H/2C Heat Pump
Temperature Differential
1 Degrees F
Temperature settings per day
4
Operating Temperature Range
32 Degrees to 120 Degrees F
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Thermostat Type
Low Voltage
Includes Positive Off
Yes
Maximum Control Temperature
99 Degrees F
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Changeover Type
Automatic and Manual
Number of Zones
1
Wireless
Yes
Application/Stages
Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
Maximum Operating Humidity
90 %
Minimum Operating Temperature
32 Degrees F
Wireless System Compatibility
RedLink
Programming Capability
5-1-1, 5-2
Number of Cooling Stages - Conventional System
2
Compatible System Type
Heat Pump with Aux
Minimum Control Temperature
40 Degrees F
Includes Batteries
Yes
Number of Heating Stages - Conventional System
2
Mounting Direction
Horizontal
Mounting Direction/Shape
Horizontal
Number of Heating Stages - Heat Pump System
3
Differential Type
Adjustable
Temperature Control Range
40 Degrees to 99 Degrees F
Temperature Readout
Yes
Minimum Operating Humidity
5 %
Number of Cooling Stages - Heat Pump System
2
Fan Settings
Auto-On
Shape
Rectangle
Sensor Location
Remote
Operating Humidity Range
5% to 90% RH
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
120 Degrees F

Description

Wireless Thermostat, Stages Heat 3 Heat Pump or 2 Conventional, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 5-1-1 or 5-2, Terminal Designations C, G, L, R, RAS, RC, RH, W-O/B, W2-AUX/E, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability Yes, Battery Backup Yes, Low Battery Indicator Yes
