  11. Programmable Thermostat, 7 Programs, 3 H, 2 C, Electrical Box Mount, Hardwired/Battery, 20/30VAC

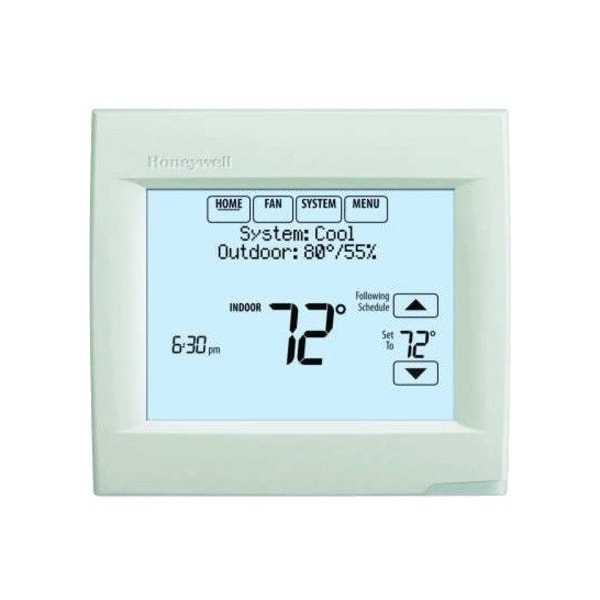

Honeywell Home Programmable Thermostat, 7 Programs, 3 H, 2 C, Electrical Box Mount, Hardwired/Battery, 20/30VAC TH8320R1003 - main

Programmable Thermostat, 7 Programs, 3 H, 2 C, Electrical Box Mount, Hardwired/Battery, 20/30VAC

  • Mfr # TH8320R1003

  • Zoro # G1827253

product price: $275.99
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
3
Mounting Type
Horizontal or Vertical
Mounting Location
Electrical Box
Color
Arctic White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH8320R1003
Zoro #
G1827253
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 5/8"
Width
4 15/16"
Depth
1 1/8 in
Display Size
10 sq in
Overall Depth
1 1/8 in
Screen Height
3 1/8 in
Overall Height
4 5/8 in
Overall Width
4 15/16 in
Screen Width
3 1/8 in
Digit Size
Standard

Details

Item
Programmable Thermostat
Voltage
20/30VAC
Stages Heat
3
Mounting Type
Horizontal or Vertical
Mounting Location
Electrical Box
Color
Arctic White
Control Range
Heat 40 Degrees to 90 Degrees F, Cool 50 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7
WiFi Capability
No
Terminal Designations
R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1, S1
Filter Indicator
Yes
Includes
Mfr. No. TH8320R1003 and (3) AAA Thermostat Batteries
Display Type
LCD
Humidification Control
No
Batteries Included
Yes
Fan Switching
Auto-On-Circulate
Features
Real Time Clock, Change Reminders Reminds You to Service or Replace the Air Filter, Humidifier Pad, Ultraviolet Lamp or Thermostat Batteries, Removable from Wall For Programming, Three replaceable AAA Alkaline Batteries Power Thermostats when 24 Vac Common is not Used. Non-Replaceable lithium Battery with Ten-Year Life Under Normal Use to Hold Calendar and Time Settings. Alkaline Batteries Keep Calendar and Time After Lithium Battery is no Longer Functional
Footnotes
1, 2, 3, 4, 6, 8
For Use With
Gas, Oil, Electric Heat, or Heat Pump, Outdoor or Indoor Remote Sensors
Temp. Settings per Day
4
Programmable Fan
Yes
Low Battery Indicator
Yes
Temporary Program Override
Yes
Key Pad Lockout
Yes
Automatic Changeover
Yes
Remote Sensing Capability
Yes
Green Certification or Other Recognition
ENERGY STAR
Dehumidification Control
Yes
Mounting
Horizontal or Vertical Electrical Box
Temporary Temperature Hold
Yes
Battery Backup
Yes
Standards
Energy Star
Control Type
Touch Screen
Stages
2H/2C Conventional, 3H/2C Heat Pump
Type
Touch Screen Programmable Multi Stage, H/C or HP
Occupancy Sensor
Compatible with Occupancy Sensor
Thermostat Type
Low Voltage
Maximum Operating Temperature
120 Degrees F
Maximum Control Temperature
99 Degrees F
Wireless System Compatibility
RedLink
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Number of Heating Stages - Heat Pump System
3
Millivolt Compatible
Yes
Includes Batteries
Yes
Operating Humidity Range
5% to 90% RH
Fan Settings
Auto-Circulate-On
Operating Temperature Range
32 Degrees to 120 Degrees F
Contact Rating
18/30V AC
Application/Stages
Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Number of Heating Stages - Conventional System
2
Includes Positive Off
Yes
Shape
Rectangle
Frequency
50 Hz, 60 Hz
Programming Capability
7 Day
Number of Cooling Stages - Heat Pump System
2
Sensor Location
Remote
Housing Color
White
Number of Zones
1
Minimum Operating Temperature
32 Degrees F
Mounting Direction/Shape
Horizontal, Vertical
Minimum Operating Humidity
5 %
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Electrical Connection Type
Hardwired
Temperature Readout
Yes
Temperature Control Range
40 Degrees to 99 Degrees F
Mounting Direction
Horizontal
Filter Change Reminder
Yes
Temperature Scale
Fahrenheit/Celsius
Number of Cooling Stages - Conventional System
2
Application
Heat and Cool
Changeover Type
Automatic
Minimum Control Temperature
40 Degrees F
Temperature Sensitivity
+/-1.5 Degrees F
Temperature Differential
1 Degrees F
Maximum Operating Humidity
90 %
Temperature settings per day
4

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations A-L/A, C, G, K, R, RC, S1 S1, W-O/B, W2-AUX/E, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off, Fan Switching Auto-On-Circulate, Display Size 10 sq in, Display Type Digital, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control Yes, Remote Sensing Capability Yes, Temporary Program Override Yes
