Honeywell Home

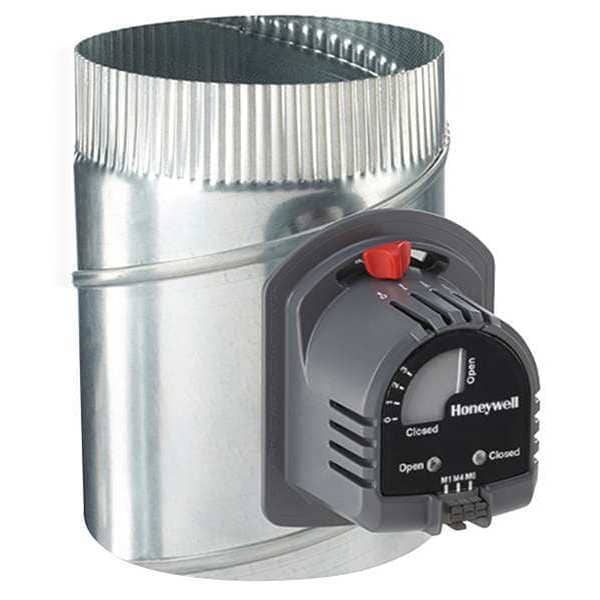

Round Damper, Gr/Rd/Steel, 8 in. Dia.

product price: $177.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Blade Material Galvanized Steel
  • Connection Wire Terminals
  • Ambient Temp. Range 5 to 60 C
  • Torque (In.-Lbs.) 71 in-lb
  • Power Method Hardwired
See all product information

Product Information

Dimensions

Width (In.) 8 in
Dia. (In.) 8 in
Rough Opening Length 8 in
Rough Opening Width 8 in
Overall Diameter 8 in
Overall Length 4 7/8 in
Overall Width 8 in
For Nominal Duct Diameter 8 in
Rough Opening Diameter 8 in
Overall Height 4 5/8 in

Details

Item 8"dia Norm Opn Rnd Stel Zone Cntrl Dampr
Blade Material Galvanized Steel
Connection Wire Terminals
Ambient Temp. Range 5 to 60 C
Torque (In.-Lbs.) 71 in-lb
Power Method Hardwired
Output Amps 8 VA
Voltage (AC) 24
Application Controls Air Flow In Heating And Cooling Systems
For Use With Forced Air Zone Control Panels And Static Pressure Control
Type Normally Open
Color Gray, Red, Steel
Ambient Humidity Range (%) 5 To 90
Frame Material Steel
Switch Action Normally Open
Nameplate Voltage 24V AC
Minimum Ambient Temperature 41 Degrees F
Electrical Connection Hardwired
For Duct Shape Round
Damper Type Dynamic
Damper Application Motorized
Rough Opening Shape Round
Full Load Current 8 A

Description

8 In.dia Norm Opn Rnd Stel Zone Cntrl Dampr, For Nominal Duct Diameter 8 in, Damper Application Motorized, Number of Panels Not Applicable, Overall Height 4 5/8 in, Overall Length 4 7/8 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 8 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 8 in, Rough Opening Length 8 in, Rough Opening Width 8 in, Damper Type Dynamic
