Shop HONEYWELL HOME

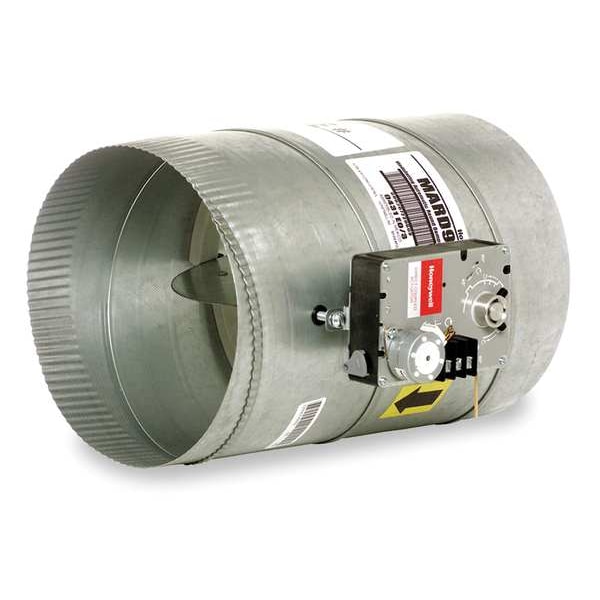

Round Damper, Modulating Automatic, 12In

  • Mfr # MARD12

  • Zoro # G0988757

product price:  $298.99
/ea
Free Shipping & Returns

Key Features

Includes
24V AC Floating-Control Type Modulating Motor
Blade Material
Galvanized Steel
Connection
Screw Terminals
Voltage (AC)
24
Terminal Designations
CCW, COM, CW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MARD12
Zoro #
G0988757
UPC #
-
Country of Origin
Mexico

Dimensions

Dia. (In.)
12 in
Overall Diameter
12 in
Rough Opening Length
12 in
Overall Height
14 in
For Nominal Duct Diameter
12 in
Overall Width
13 1/8 in
Rough Opening Diameter
12 in
Rough Opening Width
12 in
Overall Length
13 1/8 in
Wire Rope Length
13 1/8 in

Details

Item
12"dia GalvSt Rnd Zone Control Damper
Includes
24V AC Floating-Control Type Modulating Motor
Blade Material
Galvanized Steel
Connection
Screw Terminals
Voltage (AC)
24
Terminal Designations
CCW, COM, CW
Application
Zone Damper Or Bypass Damper
For Use With
Forced Air Zone Control Panels And Static Pressure Control
Output Amps
1.8 VA
Torque (In.-Lbs.)
35 in-lb
Type
Modulating Automatic
Ambient Humidity Range (%)
5 to 95
Timing (Sec.)
90 sec
Rotation Angle (Deg.)
90 Degrees
Agency Compliance
CUL, UL
Ambient Temp. Range
20 Degrees to 125 Degrees F
Requires
SPC For Bypass
Standards
UL Listed; cUL
Full Load Current
1.8 A
Electrical Connection
Hardwired
Nameplate Voltage
24V AC
Rough Opening Shape
Round
Damper Application
Zoning
Damper Type
Dynamic
Includes Motor
Yes
Minimum Ambient Temperature
20 Degrees F
For Duct Shape
Round

Description

12 In.dia GalvSt Rnd Zone Control Damper, For Nominal Duct Diameter 12 in, Damper Application Zoning, Number of Panels Not Applicable, Overall Height 14 in, Overall Length 13 1/8 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 13 1/8 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 12 in, Rough Opening Length 12 in, Rough Opening Width 12 in, Damper Type Dynamic
