Shop HONEYWELL HOME

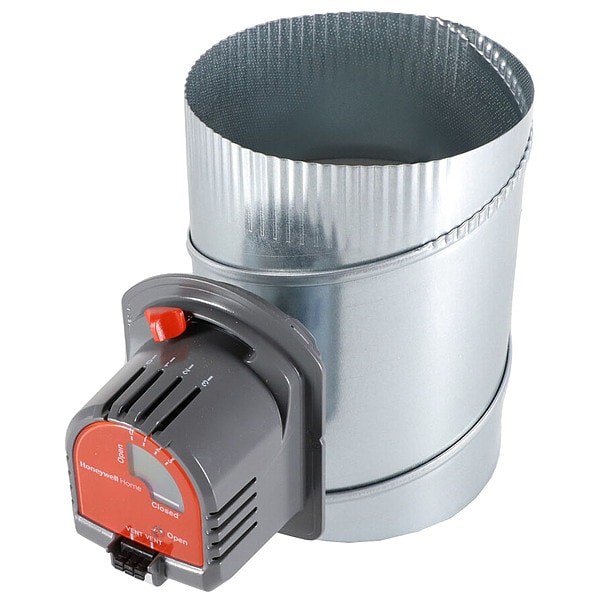

Vent. Control/Dampr, 8VA Out, 6in Dia

  • Mfr # Y8150A1017

  • Zoro # G4420565

product price:  $294.99
/ea
Free Shipping & Returns

Key Features

Includes

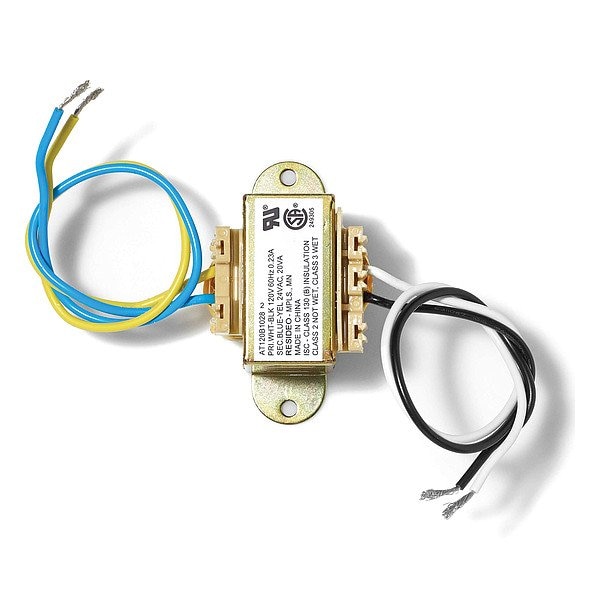

24V Transformer; TrueZONE Damper/Actuator; Ventilation Controller
Blade Material
Galvanized Steel
Connection
Wire Terminals
Dia. (In.)
6 in
Voltage (AC)
24
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Y8150A1017
Zoro #
G4420565
UPC #
-
Country of Origin
Mexico

Dimensions

Dia. (In.)
6 in
Rough Opening Diameter
6 in
Overall Height
9 3/4 in
Rough Opening Width
6 in
For Nominal Duct Diameter
6 in
Rough Opening Length
6 in
Overall Length
7 7/8 in
Overall Width
12 1/4 in
Overall Diameter
6 in
Wire Rope Length
7 7/8 in

Details

Item
6"dia Round Steel Vent Zone Cntrl Dampr
Includes
24V Transformer; TrueZONE Damper/Actuator; Ventilation Controller
Blade Material
Galvanized Steel
Connection
Wire Terminals
Voltage (AC)
24
Torque (In.-Lbs.)
71 in-lb
Ambient Humidity Range (%)
5 To 90
Output Amps
8 VA
Ambient Temp. Range
5 to 60 C
For Use With
Forced Air Zone Control Panels And Static Pressure Control
Power Method
Hardwired
Type
Modulating Automatic
Application
Controls Air Flow In Heating And Cooling Systems
Color
Gray, Red, Steel
Frame Material
Steel
Full Load Current
0.6 A
For Duct Shape
Round
Electrical Connection
Hardwired
Minimum Ambient Temperature
41 Degrees F
Maximum Air Velocity
160 CFM
Rough Opening Shape
Round
Nameplate Voltage
24V DC
For Air Type
Clean Air
Damper Type
Dynamic
Damper Application
Zoning

Description

6 In.dia Round Steel Vent Zone Cntrl Dampr, For Nominal Duct Diameter 6 in, Damper Application Zoning, Number of Panels Not Applicable, Overall Height 9 3/4 in, Overall Length 7 7/8 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 12 1/4 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 6 in, Rough Opening Length 6 in, Rough Opening Width 6 in, Damper Type Dynamic, Maximum Air Velocity 160 CFM
