Shop HONEYWELL HOME

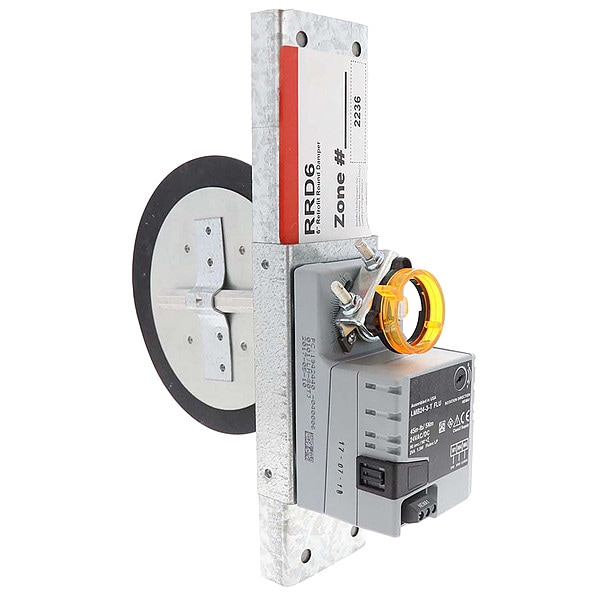

Round Motorized Damper, Retrofit, Dia 6 In

  • Mfr # RRD6

  • Zoro # G2358973

product price:
$
195.99
/ea
Free Shipping & Returns

Key Features

Includes
(12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template
Blade Material
Galvanized Steel
Connection
3 Wires
Rotation Angle (Deg.)
90 Degrees
For Use With
4XA22, 4XA24, 4XA26
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RRD6
Zoro #
G2358973
UPC #
-
Country of Origin
Mexico
Item
Round Motorized Damper
Includes
(12) Mounting Screws; (4) 1-1/2 in Self-Drilling Hex Washer Head Screws; Adhesive Backed Cutout Template
Blade Material
Galvanized Steel
Connection
3 Wires
Rotation Angle (Deg.)
90 Degrees
For Use With
4XA22, 4XA24, 4XA26
Application
Heating And Cooling Systems
Requires
Zone Control Panel
Ambient Temp. Range
43 to 122 F
Terminal Designations
M1, M4, M6
Voltage (AC)
24
Timing (Sec.)
90 sec
Output Amps
2.5 VA
Type
Retrofit Zoning
Torque (In.-Lbs.)
35 in-lb
Frame Material
Steel
Damper Type
Dynamic
Maximum Temperature Rating
122 Degrees F
Damper Application
Motorized
Nameplate Voltage
24V DC
Rough Opening Shape
Round
Electrical Connection
Hardwired
Frequency
50/60 Hz
Includes Motor
Yes
For Duct Shape
Round
Full Load Current
2.5 A
Standards
UL Listed

Description

Round Motorized Damper, For Nominal Duct Diameter 6 in, Damper Application Motorized, Number of Panels Not Applicable, Overall Height 3 1/8 in, Overall Length 4 1/2 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 2 5/8 in, Frame Material Thickness Not Applicable, Blade Material Galvanized Steel, Maximum Air Pressure Not Applicable, Overall Diameter 6 in, Rough Opening Length 6 in, Rough Opening Width 6 in, Damper Type Dynamic, Maximum Air Velocity Not Applicable
