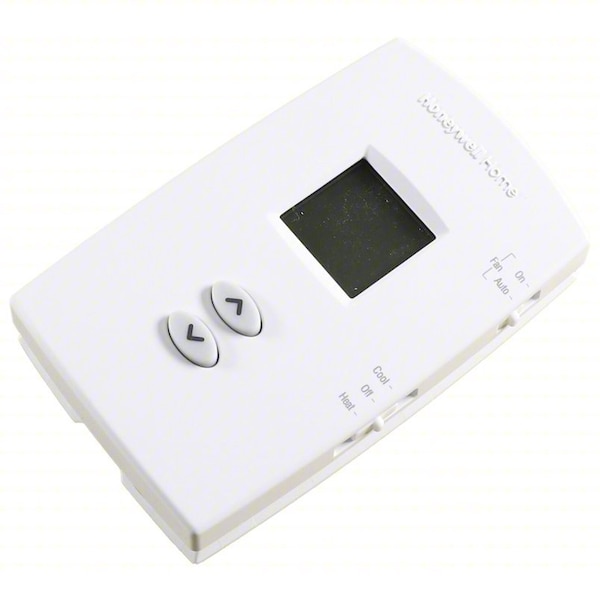

Honeywell Home Vertical Non-Programmable Thermostats, 1 H, 1 C, Hardwired/Battery, 20/30VAC TH1110DV1009/U - main

Vertical Non-Programmable Thermostats, 1 H, 1 C, Hardwired/Battery, 20/30VAC

  • Mfr # TH1110DV1009/U

  • Zoro # G0257363

product price: $44.99
/ea

Key Features

Voltage
20/30VAC
Stages Heat
1
Mounting Type
Vertical
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TH1110DV1009/U
Zoro #
G0257363
UPC #
-
Country of Origin
Mexico

Dimensions

Height
4 11/16"
Width
2 7/8"
Depth
1 1/8 in
Overall Height
4 11/16 in
Overall Width
2 7/8 in
Mounting Hole Diameter
3/16 in, 7/32 in
Overall Depth
1 1/8 in
Digit Size
Standard

Details

Item
Vertical Non-Programmable Thermostats
Voltage
20/30VAC
Stages Heat
1
Mounting Type
Vertical
Color
Premier White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
No
Power Method
Hardwired/Battery
750mV Compatible
Yes
Batteries Included
Yes
Fan Switching
Auto-On
Includes
2 AAA Batteries
Footnotes
3, 4
For Use With
Conventional or Heat Pumps
Programmable Fan
No
Low Battery Indicator
YES
Battery Backup
Yes
Display
Digital Backlit
Terminal Designations
R, RC, C, W, Y, G, O, B
Humidification Control
No
Dehumidification Control
No
Display Type
Digital
Key Pad Lockout
No
Mounting
Vertical
Stages
1H/1C Conventional, 1H/1C Heat Pump
Type
Digital Nonprogrammable Single Stage H/C
Control Type
Push Button, Slide Switch
Application
Heat or Cool
Changeover Type
Manual
Maximum Control Temperature
99 Degrees F
Maximum Operating Temperature
120 Degrees F
Amperage
0.02 to 1.0 A
Number of Cooling Stages - Heat Pump System
1
Programming Capability
Not Programmable
Contact Rating
20 V AC, 30 V AC
Minimum Operating Humidity
5 %
Number of Heating Stages - Conventional System
1
Housing Color
White
Number of Heating Stages - Heat Pump System
1
Fan Settings
Auto-On
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Millivolt
Maximum Operating Humidity
90 %
Electrical Connection Type
Hardwired
Minimum Control Temperature
40 Degrees F
Number of Cooling Stages - Conventional System
1
Temperature Scale
Fahrenheit/Celsius
Number of Zones
1
Battery Type
(2) AAA Batteries
Operating Humidity Range
5% to 90%
Shape
Rectangle
Minimum Operating Temperature
32 Degrees F
Temperature Control Range
40 Degrees to 99 Degrees F
Millivolt Compatible
Yes
Mounting Direction/Shape
Vertical
System/Fan Settings
Cool-Heat-Off/Auto-On
Operating Temperature Range
32 Degrees to 120 Degrees F
Mounting Direction
Vertical
Thermostat Type
Low Voltage
Frequency
50 Hz, 60 Hz
System Settings
Cool-Heat-Off
Includes Positive Off
Yes

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Millivolt, Push Button, Slide Switch, Dehumidification Control No, Digit Size Standard, Digital, Dual Transformer Compatible No, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 40 Degrees F, Maximum Control Temperature 99 Degrees F, Key Features Dual Powered, Key Pad Lockout No
