  11. Wireless Thermostat, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, 20/30VAC

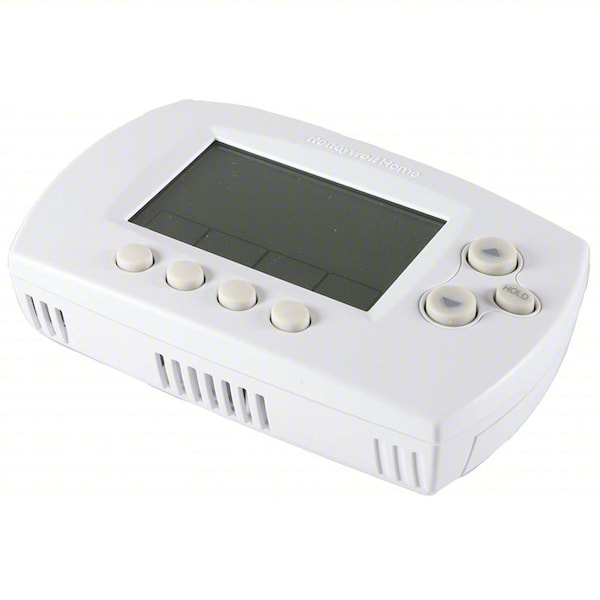

Honeywell Home Wireless Thermostat, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, 20/30VAC YTH6320R1001 - main

Wireless Thermostat, 5-1-1 or 5-2 Programs, 3 Heat Pump or 2 Conventional H, 2 C, 20/30VAC

  • Mfr # YTH6320R1001

  • Zoro # G1702014

product price: $381.99
/ea
Free Shipping & Returns

Key Features

Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YTH6320R1001
Zoro #
G1702014
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
3 9/16 in
Overall Height
5 13/16 in
Digit Size
Standard
Overall Depth
1 1/2 in

Details

Item
Wireless Thermostat
Voltage
20/30VAC
Stages Heat
3 Heat Pump or 2 Conventional
Color
White
Control Range
32 Degrees to 120 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Thermostat-Battery
Programs per Week
5-1-1 or 5-2
Key Pad Lockout
No
Programmable Fan
No
Remote Sensing Capability
Yes
Battery Backup
Yes
Includes
Mfr.No.TH6320R1004, THM5320R1000, Return Air Sensor, 2AA Batteries
Temp. Settings per Day
4
Low Battery Indicator
Yes
WiFi Capability
No
Fan Switching
Auto-on
Humidification Control
No
Display Type
Digital
Features
Zoning Panel and Return Air Sensor is Hardwired to HVAC Equipment, Wireless Adaptor Measures 5-9/16 in H x 4-3/8 in W x 1-1/4 in D
Terminal Designations
C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Footnotes
1, 3
Temperature Limiting
Yes
Temporary Program Override
Yes
Dehumidification Control
No
Stages
2H/2C Conventional, 3H/2C Heat Pump
Type
Wireless Programmable FocusPRO(R) System Kit
Control Type
Push Button
Application
Heat and Cool
Programming Capability
5-1-1, 5-2
Backlit Screen
Yes
Battery Type
(2) AA Batteries
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Compatible System Type
Electric Forced Air Furnaces, Hydronic Systems, Gas Forced Air Furnaces, Heat Pump with Aux
Number of Heating Stages - Conventional System
2
Operating Humidity Range
5% to 90% RH
Changeover Type
Automatic
Mounting Direction/Shape
Horizontal
Operating Temperature Range
32 Degrees to 120 Degrees F
Housing Color
White
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Temperature Readout
Yes
Millivolt Compatible
No
Sensor Location
Remote
Number of Cooling Stages - Conventional System
2
Includes Positive Off
Yes
Minimum Operating Temperature
32 Degrees F
Wireless System Compatibility
RedLink
Temperature Control Range
40 Degrees to 99 Degrees F
Shape
Rectangle
Includes Batteries
Yes
Thermostat Type
Low Voltage
Wireless
Yes
Contact Rating
18/30V AC
Maximum Control Temperature
99 Degrees F
Temperature Scale
Fahrenheit/Celsius
Application/Stages
Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
Minimum Operating Humidity
5 %
Fan Settings
Auto-On
Number of Zones
1
Number of Cooling Stages - Heat Pump System
2
Temperature settings per day
4
Mounting Direction
Horizontal
Temperature Differential
1 Degrees F
Minimum Control Temperature
40 Degrees F
Maximum Operating Temperature
120 Degrees F
Number of Heating Stages - Heat Pump System
3
Maximum Operating Humidity
90 %
Frequency
50 Hz, 60 Hz

Description

Wireless Thermostat Kit, Stages Heat 3 Heat Pump or 2 Conventional, Stages Cool 2, Temp. Settings per Day 4, Programs per Week 5-1-1 or 5-2, Terminal Designations C, G, L, R, RAS, RC, RH, W-O/B, W2-AUX/E, Y, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Type Digital, Key Pad Lockout No, Programmable Fan No, Humidification Control No, Dehumidification Control No, Remote Sensing Capability Yes, Temporary Program Override Yes
