  6. Industrial Snap Action Switch, Hinge, Lever Actuator, DPDT, 10A @ 240V AC Contact Rating

This item is Discontinued.

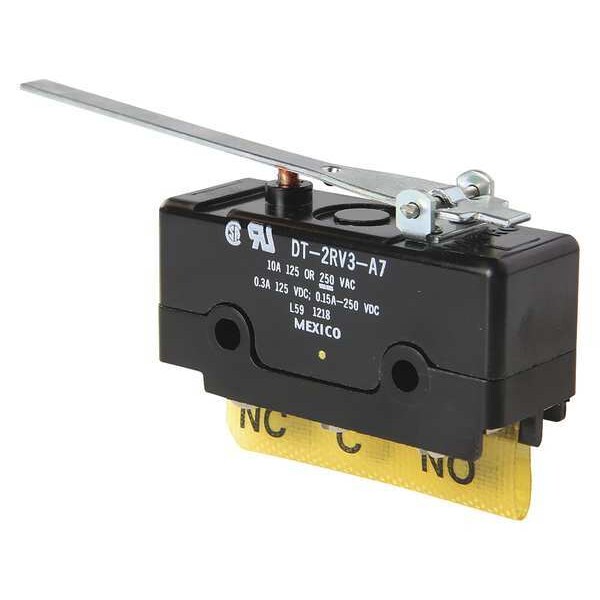

Honeywell Industrial Snap Action Switch, Hinge, Lever Actuator, DPDT, 10A @ 240V AC Contact Rating DT-2RV3-A7

Industrial Snap Action Switch, Hinge, Lever Actuator, DPDT, 10A @ 240V AC Contact Rating (Discontinued)

  • Mfr # DT-2RV3-A7
  • Zoro # G4629125
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DT-2RV3-A7
Zoro #
G4629125
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Length
2.0"
Mounting Dimension
1.00" Centers
Height
1.0"
Depth
0.7"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
2.50"
Lever Actuator Length
2.5 in
Overall Width
2 in
Overall Depth
0.7 in
Overall Height
1 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
0.3 A @ 125 V
Contact Form- Switches
DPDT
Watertight - Snap Action Switch
No
Operating Force
4 to 7 oz
Operating Temp. Range
-67 Degrees to 185 Degrees F
Housing Material
General Purpose Phenolic
Contact Form
DPDT
Voltage Rating
250VAC
Release Force
0.52 oz
Differential Travel
0.114 in
Terminal Type
Screw
Current Rating
10A
Type of Actuator
Straight Lever
Max. Pretravel
0.27 in
Electrical Connection - Snap Action Switch
Screw
Series
DT
Over Travel
0.01 in
Standards
CSA, UL Listed
AC Contact Rating
10 A @ 240 V
DC Contact Rating
0.3 A @ 125 V
Actuator Style
Hinge Lever
Differential Travel - Maximum
0.114 in
Electrical Connection
Screw
Body Material
Phenolic

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 0.3 A @ 125 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DT
