  6. Industrial Snap Action Switch, Leaf, Lever Actuator, SPDT, 15A @ 240V AC Contact Rating

This item is Discontinued.

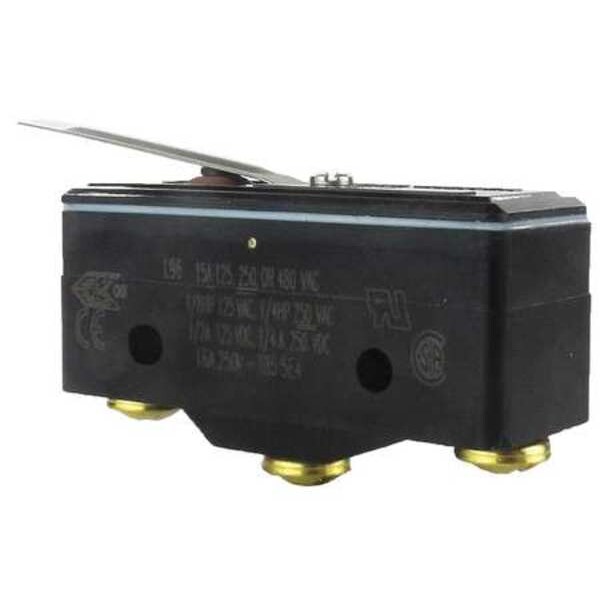

Honeywell Industrial Snap Action Switch, Leaf, Lever Actuator, SPDT, 15A @ 240V AC Contact Rating BZ-2RL5551-A2

Industrial Snap Action Switch, Leaf, Lever Actuator, SPDT, 15A @ 240V AC Contact Rating (Discontinued)

  • Mfr # BZ-2RL5551-A2
  • Zoro # G4727895
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BZ-2RL5551-A2
Zoro #
G4727895
UPC #
-
Country of Origin
Mexico

Dimensions

Lever Actuator Length - Snap Action Switch
1.95 in
Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Actuator Length
1.95"
Mounting Dimension
1.00" Centers
Depth
0.7"
Height
1.0"
Length
2.0"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Depth
0.7 in
Overall Width
2 in
Overall Height
1 in
Lever Actuator Length
1.95 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Leaf, Lever
AC Contact Rating - Snap Action Switch
15 A @ 240 V
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
SPDT
Release Force
0.494 oz
Operating Force
7 oz
Current Rating
15a
Electrical Connection - Snap Action Switch
Screw
Standards
CE 61058-1, CSA LR41370, UL E12252
Type of Actuator
Straight Leaf Lever
Differential Travel
0.05 in
Over Travel
0.06 in
Terminal Type
Screw
Voltage Rating
250VAC
Series
BZ
Max. Pretravel
0.154 in
Watertight - Snap Action Switch
No
Housing Material
Phenolic
Operating Temp. Range
-67 Degrees to 185 Degrees F
Contact Form
SPDT
DC Contact Rating
15 A @ 240 V
AC Contact Rating
15 A @ 240 V
Actuator Style
Lever
Electrical Connection
Screw
Differential Travel - Maximum
0.05 in
Body Material
Phenolic

Description

Snap Action Switch, Leaf, Lever, AC Contact Rating - Snap Action Switch 15 A @ 240 V, DC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.95 in, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
