  6. Industrial Snap Action Switch, Pin, Plunger Actuator, SPDT, 10A @ 480V AC Contact Rating

This item is Discontinued.

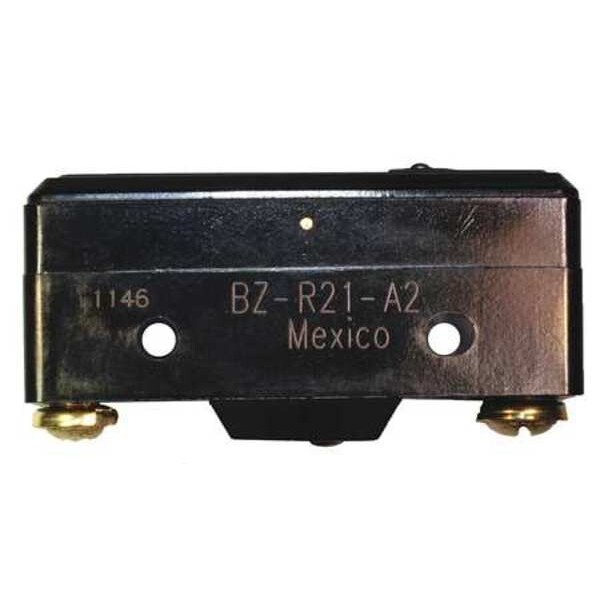

Honeywell Industrial Snap Action Switch, Pin, Plunger Actuator, SPDT, 10A @ 480V AC Contact Rating BZ-R21-A2

Industrial Snap Action Switch, Pin, Plunger Actuator, SPDT, 10A @ 480V AC Contact Rating (Discontinued)

  • Mfr # BZ-R21-A2
  • Zoro # G4722751
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BZ-R21-A2
Zoro #
G4722751
UPC #
078454915645
Country of Origin
Mexico

Dimensions

Height - Snap Action Switch
1 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.7 in
Actuator Length
2.00"
Mounting Dimension
1.00" Centers
Length
2.0"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.0"
Depth
0.7"
Overall Width
2 in
Overall Height
1 in
Overall Depth
0.7 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
10 A @ 480 V
Contact Form- Switches
SPDT
Current Rating
10A
Release Force
2.47 oz
Voltage Rating
480VAC
Terminal Type
Screw
Electrical Connection - Snap Action Switch
Screw
Operating Temp. Range
85 Degrees C
Watertight - Snap Action Switch
No
Over Travel
0.005 in
Type of Actuator
Pin Plunger
Contact Form
SPDT
Standards
CSA, ENEC, UL Listed
Differential Travel
0.044 in
Housing Material
Phenolic
Series
BZ
Max. Pretravel
0.3 mm
Operating Force
1.11 N
AC Contact Rating
10 A @ 480 V
Electrical Connection
Screw
Actuator Style
Pin Plunger
Differential Travel - Maximum
0.0449 in
Body Material
Phenolic

Description

Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 10 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1 in, Width - Snap Action Switch 2 in, Depth - Snap Action Switch 0.7 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series BZ
