Air Pressure Switch - Adjustable, -1.5 to 150 mbar, CE/UL

The HONEYWELL KROMSCHRODER SW,PRESS,AIR,DL 1,5AG 3Z is an A/C pressure switch rated for use in applications involving air and flue gas pressure measurement. It supports positive, negative, and differential pressure measurements in systems using air, flue gas, or non-aggressive gases. The switching point includes an adjustable setting dial for switching point selection within the specified range.

Key features include:

• Pressure range: -1.5 to 150 mbar (0.12 to 20"WC)
• Adjustable switching point with setting dial

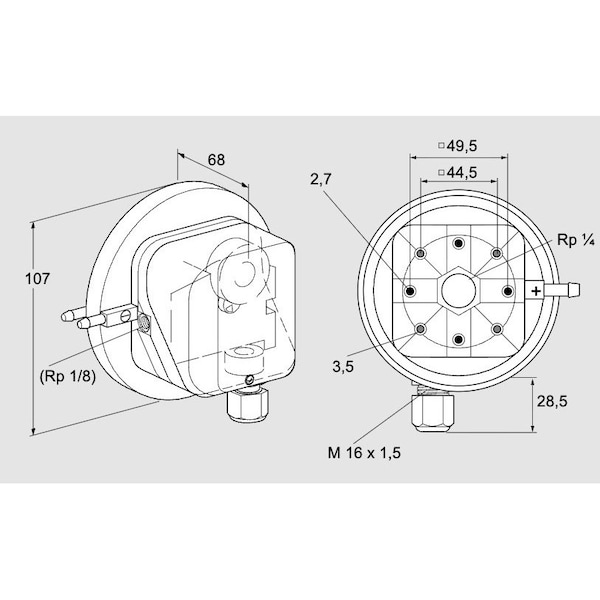

• Tube connections; CE versions: Rp 1/4, Rp 1/8; UL versions: 1/4" NPT, 1/8" NPT
• Contact options: Silver contacts (24–250V AC, 0.05–5A), Gold contacts (5–250V AC, 0.01–5A) for CE; Silver contacts (30–240V AC, 5A), Gold contacts (max 30V AC, 0.05A) for UL
• Screw terminals with M16x1.5 cable gland or 1/2" NPT conduit entry
• Certified by EU and UL; FM and AGA approved; EAC and RoHS listed
• Silicon-free construction
