Air Pressure Switch, Adjustable, -1.5–150 mbar, DL 10A 32

The HONEYWELL KROMSCHRODER SW,PRESS,AIR,DL 10A 32 is an A/C pressure switch rated for use in applications involving air and flue gas pressure measurement. It is compatible with positive, negative, and differential pressure detection within specified media (air, flue gas, or non-aggressive gases). The switching point is adjustable within the specified range using the provided setting dial.

Key features include:

• Adjustable switching point with a range of -1.5 to 150 mbar (0.12 to 20"WC)

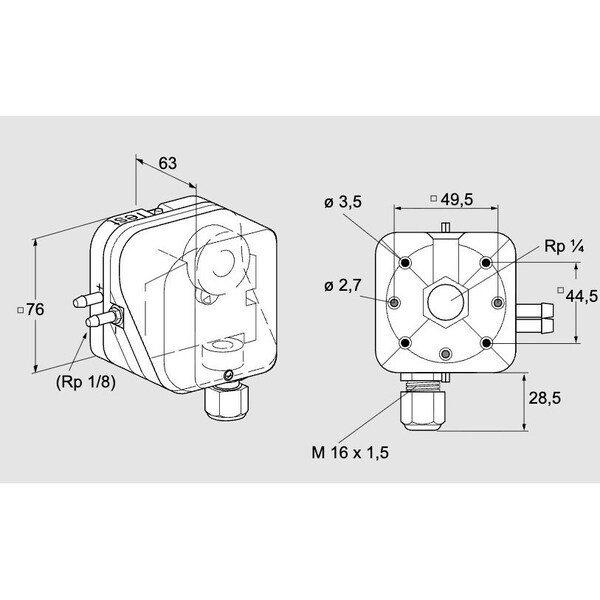

• Tube connections; CE versions: Rp 1/4, Rp 1/8; UL versions: 1/4" NPT, 1/8" NPT
• Electrical contacts available as silver (24–250V AC, 0.05–5A) or gold (5–250V AC, 0.01–5A) for CE versions; silver (30–240V AC, 5A) or gold (max 30V AC, 0.05A) for UL versions
• Screw terminals with M16x1.5 cable gland or optional screw terminals with a 1/2" NPT cable conduit
• Certified by EU and UL; FM and AGA approved; EAC and RoHS compliant
• Silicon-free construction
