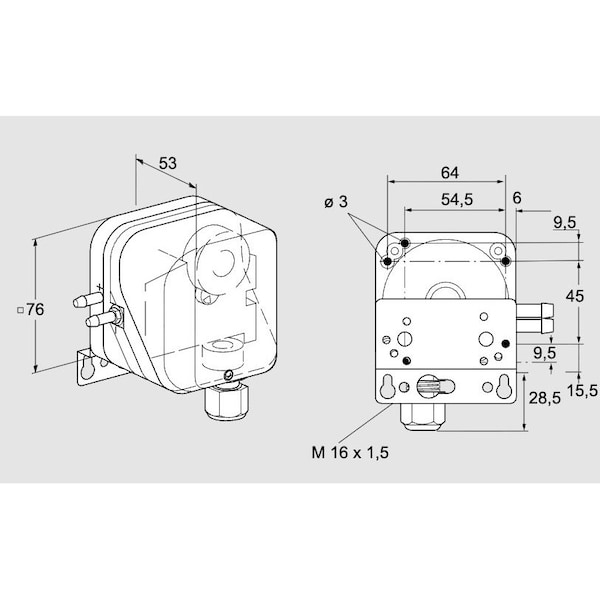

Air Pressure Switch - Adjustable, 1.5–150 mbar, UL/CE

The HONEYWELL KROMSCHRODER SW,PRESS,AIR,DL 10KG 3WZ is an A/C pressure switch rated for use in applications involving air and flue gas pressure measurement. It supports positive, negative, and differential pressure measurements in systems using air, flue gas, or non-aggressive gases. The switching point features an adjustable setting dial for selection of switching point within the specified range.

Key features:

• Pressure range: -1.5 to 150 mbar (0.12 to 20"WC)
• Pneumatic connections: Tube connections; CE versions with Rp 1/4 and Rp 1/8; UL versions with 1/4" NPT and 1/8" NPT
• Contact options: Silver contacts (24–250V AC, 0.05–5A), gold contacts (5–250V AC, 0.01–5A) for CE; silver contacts (30–240V AC, 5A), gold contacts (max 30V AC, 0.05A) for UL
• Electrical connection: Screw terminals with M16x1.5 cable gland or 1/2" NPT conduit
• Certifications include EU certification, UL listing, FM and AGA approval
• Constructed silicon-free
