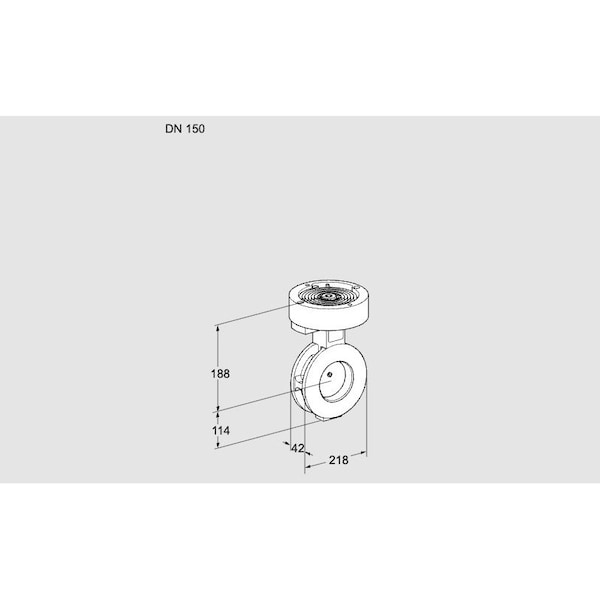

Butterfly Valve - DN150, Flange Mount, 10:1 Ratio, Air Flow Control

The HONEYWELL KROMSCHRODER VLV, BFLY, BVAF150Z05, DN150 is a butterfly valve rated for control of air flow rates within specified parameters. It supports control ratios up to 10:1 and is prepared for the attachment of an actuator IC 20 or IC 40. This valve is intended for installation between two flanges and accommodates medium temperatures from -20°C to +60°C with a maximum operating pressure of 500 mbar.

Key features include:

• Intended for use in air flow rate adjustment applications (BVA, BVAF series)
• Control ratio capability up to 10:1
• Compatible with actuator models IC 20 or IC 40
• Designed for flange mounting (DN150 nominal diameter)
• Maximum operating pressure: 500 mbar
• Medium temperature range: -20°C to +60°C
• Constructed to minimize mechanical play and enable prompt actuator response
