Gas Pressure Regulator & Solenoid Valve - 3/4" NPT, 24V DC, IP65

The HONEYWELL KROMSCHRODER VLV, SOLND, PRESS REG, 3/4 NPT, VAD1T /20N/ is a solenoid valve intended for use in applications involving gas pressure control and regulation. It integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane as specified by manufacturer. This unit provides rapid actuation as per product specifications and is equipped with a pilot lamp to indicate operational status.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage: 24 V DC
• Protection rating: IP65
• Approvals: FM and SA approved; EU certified
• Valve size: Size 1; outlet DN15 (1/2") Rp internal thread

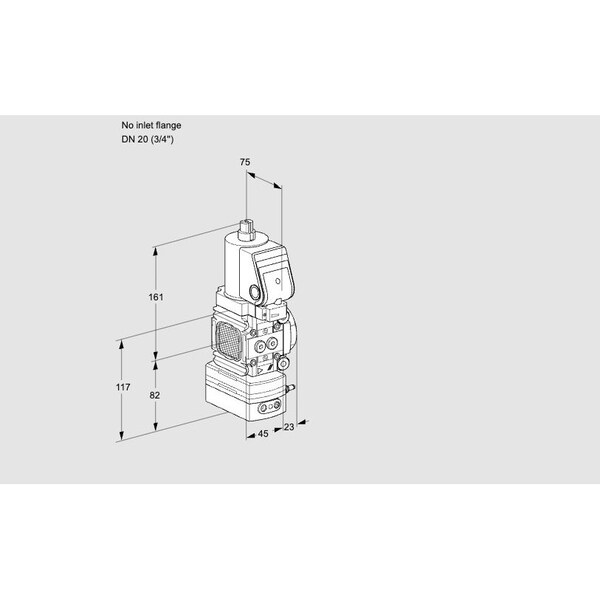

• No inlet flange; reduced valve seat design
• Accessories include right-side pressure switch (30–110 mbar) with test point and two left-side screw plugs
