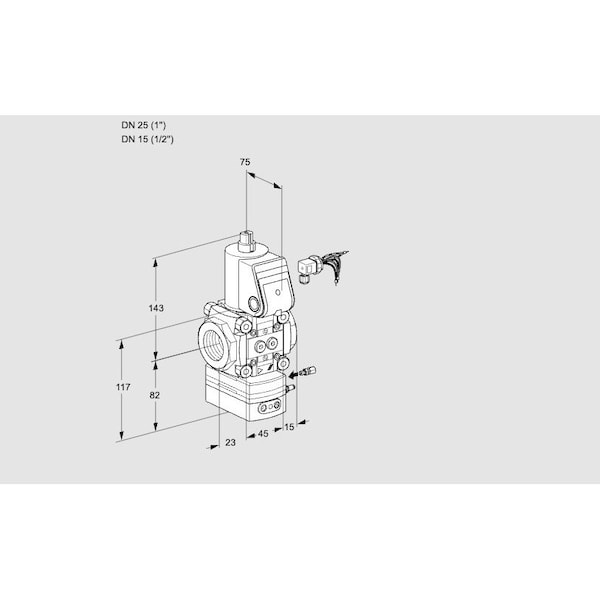

Gas Pressure Regulator & Solenoid Valve, VAG125/15R/NWBE, 1/2" DN15, 24V DC

The HONEYWELL KROMSCHRODER VAG125/15R/NWBE is a gas valve intended for use in controlling gas pressure within specified system parameters. This unit integrates both a Class A pressure regulator (to EN 88) and a Class A solenoid valve (to EN 161), compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. It incorporates a mechanism rated for rapid actuation according to product specifications, an integrated pilot lamp, and is constructed to meet IP65 standards for ingress protection.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Electrical connection: M20 cable gland; mains voltage 24 V DC
• Valve seat reduced; right-side accessories include a pressure switch (30–110 mbar) with test point at outlet pressure
• Left-side accessories: two screw plugs
• FM and SA approved; EU certified
• No inlet flange; size 1 configuration
