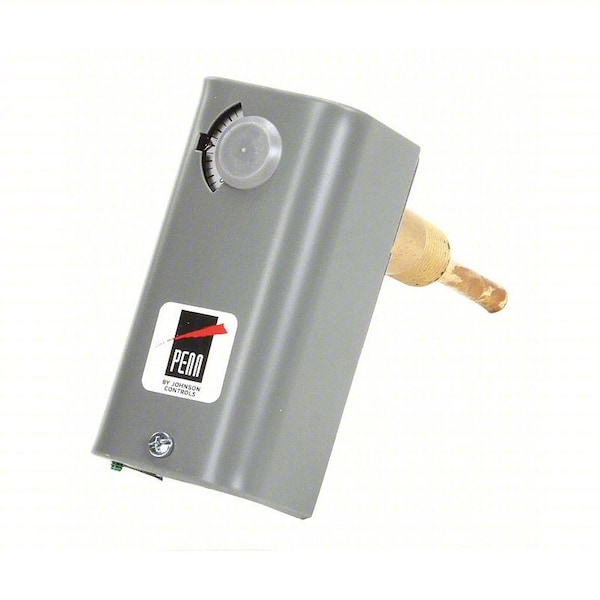

Line Voltage Mechanical Thermostat, Heat or Cool, 200 to 550F, Convertible, 120 to 277V AC, 1C, 1H

  • Mfr # A19AAB-10C

  • Zoro # G7614065

product price:
$
292.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A19AAB-10C
Zoro #
G7614065
UPC #
-
Country of Origin
Mexico
Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
200 to 550 Degrees F
Control Type
Convertible
Voltage
120 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Inductive Amps @ 120V
16 A
Locked Rotor Amps @ 120V
96 A
Includes
Bulb Mounting Clip, Remote Sensing Bulb
Inductive Amps @ 208V
9.2 A
Contact Rating Resistive @ 120V
22 A
Locked Rotor Amps @ 240V
48 A
Number of Switches
1
Contact Rating Resistive @ 240V
22 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Contact Rating Resistive @ 277V
22 A
Resistive Amps @ 208VAC
22 A
Enclosure Type
Galvanized/Steel
Inductive Amps @ 240V
8 A
Standards
CSA LR948/4813 02, UL E6688
For Use With
High Temperature Heating/Oven
Number of Relay Outputs
1
Thermostat Type
High-Range Indoor Single-Stage Controls
Number of Relay Inputs
1
Features
Line Voltage Components Switch Box Mounted Which Provides Isolation of Electrical Circuit From Sensing Element, Mounting Plate Allows Easy Mounting and Wiring without Removing the Cover, Enclosed Pennswitch Provides Dust Protection for Contacts
Temperature Sensitivity
-3 Degrees F, +5 Degrees F
Contact Type
Snap Action
Temperature Differential
10 Degrees F
Full Load Amps @ 240V AC
8 A
Electrical Connection Type
Hardwired, Screw Terminal
Temperature Scale
Fahrenheit/Celsius
Changeover Type
Manual
Maximum Operating Temperature
620 Degrees F
Differential Type
Fixed
Number of Poles
1
Pilot Duty Rating
125 VA @ 24 to 600V AC
Contact Rating
120V AC, 208V AC, 240V AC
Sensor Location
Remote
Enclosure Color
Gray
Full Load Amps @ 120V AC
16 A
Maximum Control Temperature
550 Degrees F
Stages
1H/1C
Minimum Operating Temperature
-35 Degrees F
Enclosure NEMA Rating
1
Minimum Control Temperature
200 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable
Enclosure Material
Steel
Resistive Amps @ 208V AC
22 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 200 Degrees to 550 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open on Rise, Number of Switches 1, Differential 10 Degrees F, Height 4-3/8 In., Width 2-1/8 In.
