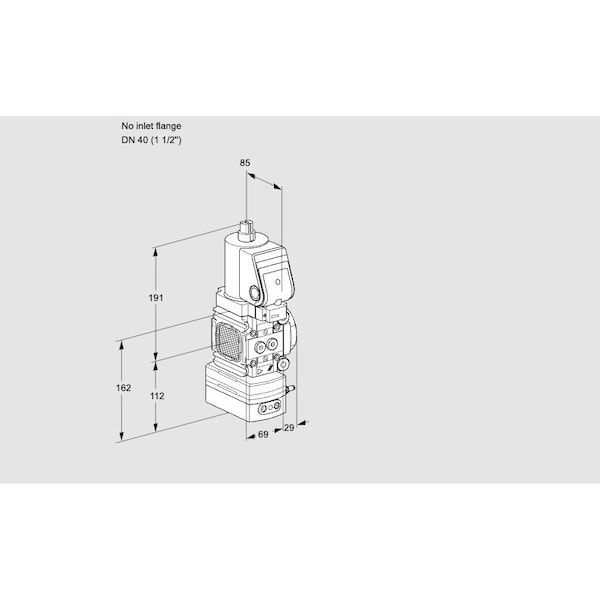

Gas Pressure Regulator with Solenoid Valve, 1-1/2" NPT, 24V DC, IP65

The HONEYWELL KROMSCHRODER REG, PRESSURE 1 1/2NPT, GAS, CPS R VAG 2T /4 is a gas pressure regulator intended for use in applications requiring regulation and monitoring of gas pressure in industrial systems. This unit features a Class A pressure regulator according to EN 88 standards and integrates a Class A solenoid valve per EN 161 for use with gas, air, and biologically produced methane. It operates at a maximum inlet pressure of 500 mbar (7 psig). Rated for an adjustable outlet pressure range of 35-100 mbar.

Key features include:

• Connection: Outlet DN 15 (1/2") Rp internal thread; no inlet flange
• Electrical: Mains voltage of 24 V DC with M20 cable gland connection
• Protection rating: IP65 enclosure
• Approvals: FM and SA approved; EU certified
• Operation: Features rapid actuation mechanism; pilot lamp included
• Accessories: Right-side mountable pressure switch (30–110 mbar), test point on right-hand side for outlet pressure measurement, two screw plugs on the left side
