Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1-/20R/NW-100A is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane within specified parameters. It features rapid actuation mechanism, an integrated pilot lamp, and is housed in an IP65-rated enclosure.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet connection: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Mains voltage: 24 V DC; electrical connection via M20 cable gland on right side of connection box
• Valve seat reduced; size 1 configuration
• FM and SA approved; EU certified

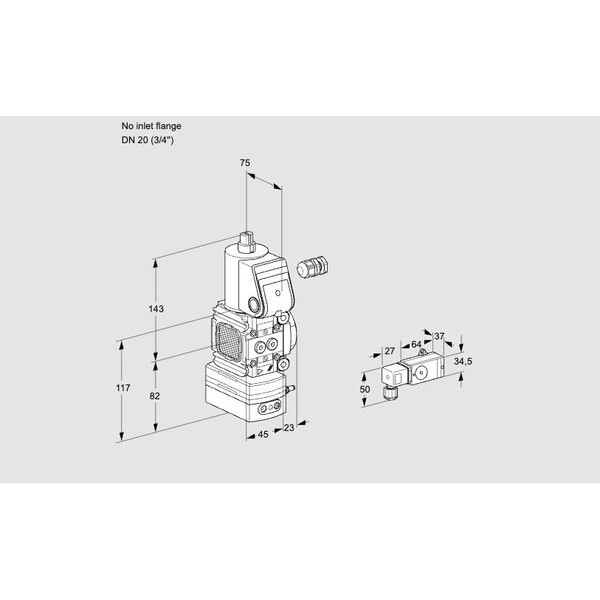

• No inlet flange included
• Accessories include right-side pressure switch (30–110 mbar) with test point at outlet pressure, left-side two screw plugs
