Gas Pressure Regulator with Solenoid Valve, 1/2" DN15, 24V DC, IP65

The HONEYWELL KROMSCHRODER VAD1-/25R/NW-100A is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), compatible with gas, air, and biologically produced methane as specified by manufacturer guidelines. It features rapid actuation mechanism, an integrated pilot lamp, and electrical connection via M20 cable gland.

Key features include:

• Maximum inlet pressure: 500 mbar (7 psig)
• Outlet: DN 15 (1/2") Rp internal thread
• Outlet pressure range: 35–100 mbar
• Protection rating: IP65
• Certifications: FM, SA approved; EU certified
• Mains voltage: 24 V DC
• Size designation: Size 1

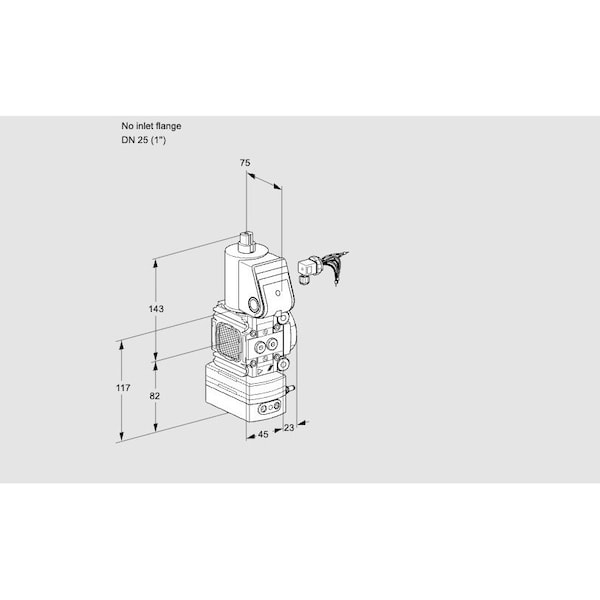

• No inlet flange; reduced valve seat design
• Accessories include right-side pressure switch (30–110 mbar) with test point for outlet pressure and two screw plugs on the left
